(35.360.AK[10]) - VAR - 461561, 461865, 461868, 461869, 461871 - ARM, LINES, HAMMER, SHEARS, HIGH FLOW (ARM L = 3.4M)

Запчасти Case CX490D LC (35.360.AK[10]) - VAR - 461561, 461865, 461868, 461869, 461871 - ARM, LINES, HAMMER, SHEARS, HIGH FLOW (ARM L = 3.4M) (35) - HYDRAULIC SYSTEMS

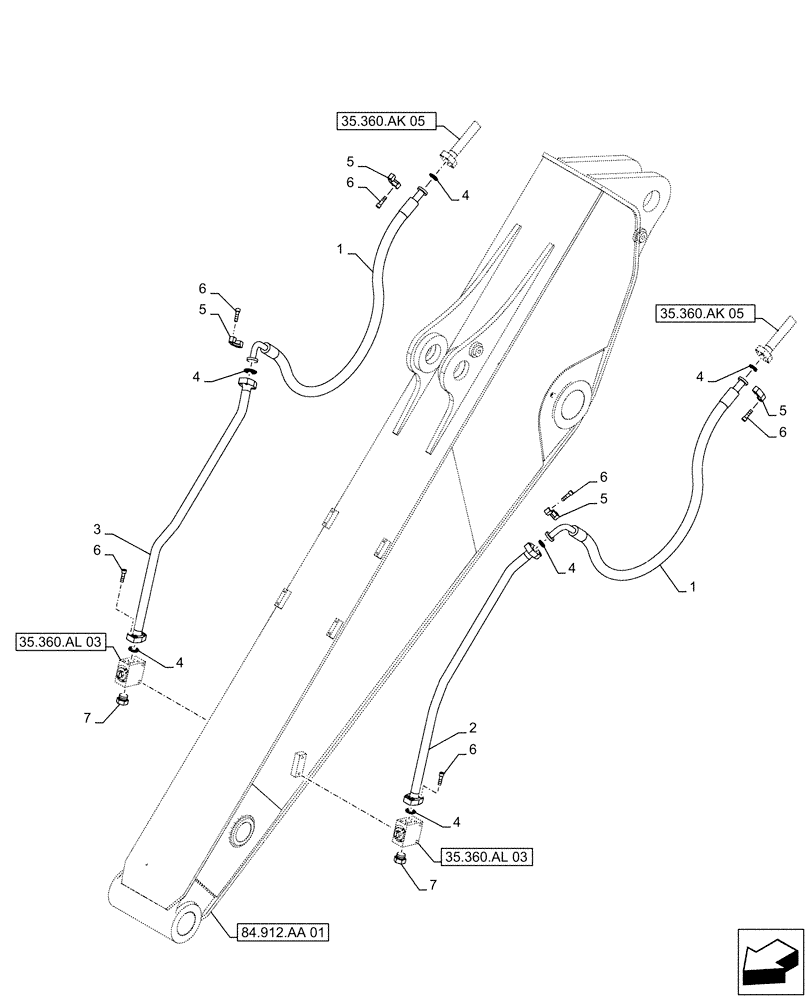

Схема запчастей Case CX490D LC - (35.360.AK[10]) - VAR - 461561, 461865, 461868, 461869, 461871 - ARM, LINES, HAMMER, SHEARS, HIGH FLOW (ARM L = 3.4M) (35) - HYDRAULIC SYSTEMS
35.360.ak 05
5
4
6
1
4
7
1
5
4
6
6
7
6
4
3
6
5
4
4
6
5
2
84.912.aa 01
35.360.al 03
35.360.al 03
35.360.ak 05
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KSV25490

HYDRAULIC HOSE

32mm ID x 2000mm, to Main Control Valve

2шт.

2

KTV19640

PIPE

1шт.

3

KTV19650

PIPE

1шт.

4

153626A1

O-RING

6шт.

5

150124A1

FLANGE

8шт.

6

862-14050

HEX SOC SCREW,M14 x 50mm, Cl 12.9

M14 x 50mm

24шт.

7

162335A1

PLUG

2шт.

Выбрано товаров: 7
