Запчасти Case CX490D LC (35.360.AB[05]) - VAR - 461871 - HAMMER CIRCUIT, LINES, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

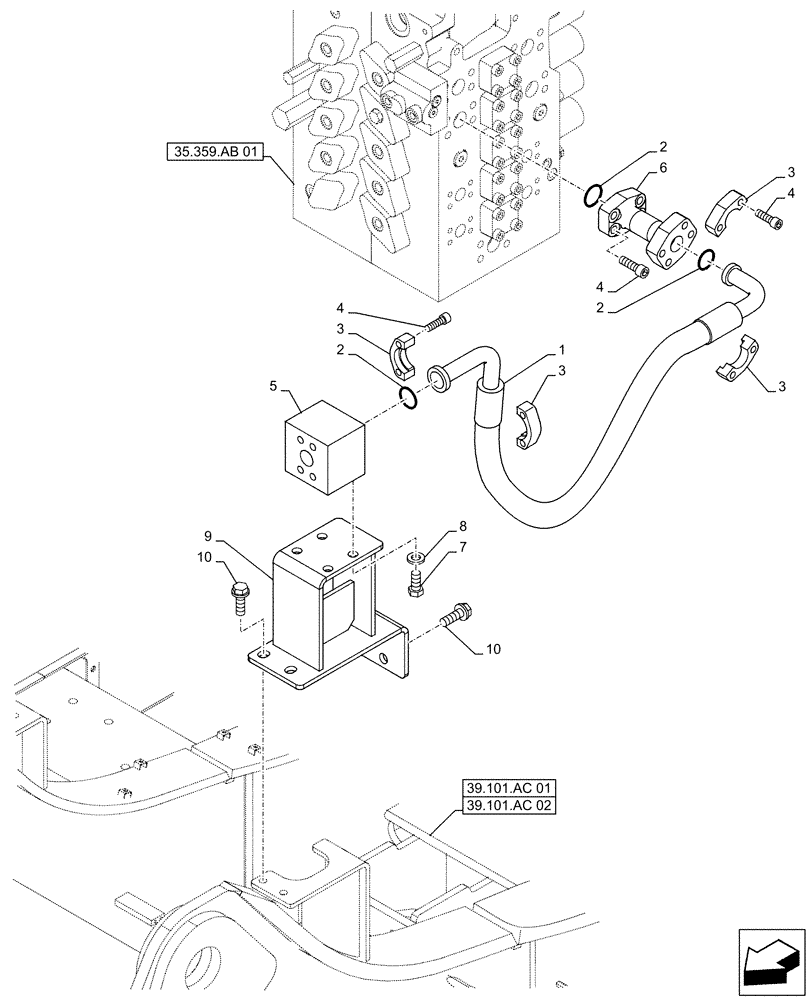

Схема запчастей Case CX490D LC - (35.360.AB[05]) - VAR - 461871 - HAMMER CIRCUIT, LINES, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS
39.101.ac 01
2
2
4
4
7
1
3
8
9
3
3
2
6
5
3
4
10
10
39.101.ac 02
35.359.ab 01

Артикул

Название

Примечание

Количество

1

KTJ16900

HYDRAULIC HOSE

32mm ID x 980mm

1шт.

2

153626A1

O-RING

3шт.

3

150124A1

FLANGE

4шт.

4

108R014Y045R

BOLT,Hex Skt, M14 x 45mm, Cl 12.9

8шт.

5

KSJ2830

MANIFOLD VALVE

1шт.

6

KTJ17110

PIPE

1шт.

7

627-16035

BOLT,Hex, M16 x 2 x 35mm, Cl 10.9, Full Thd

4шт.

8

157548A1

WASHER

M16

4шт.

9

KTJ16620

BRACKET

1шт.

10

165929A1

BOLT,Sems, M16

M16 x 50mm

4шт.

Выбрано товаров: 10
