(35.357.AQ[03]) - STD + VAR - 461558 - PILOT VALVE, DRAIN LINE, CONTROL PATTERN SELECTION

Запчасти Case CX490D LC (35.357.AQ[03]) - STD + VAR - 461558 - PILOT VALVE, DRAIN LINE, CONTROL PATTERN SELECTION (35) - HYDRAULIC SYSTEMS

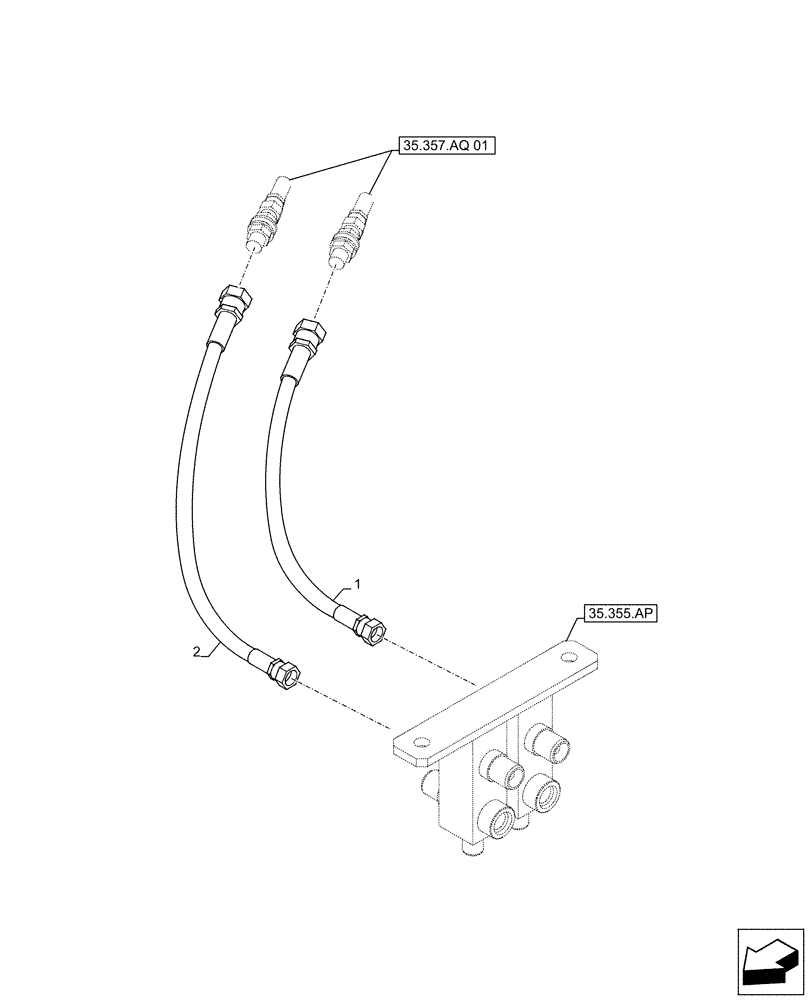

Схема запчастей Case CX490D LC - (35.357.AQ[03]) - STD + VAR - 461558 - PILOT VALVE, DRAIN LINE, CONTROL PATTERN SELECTION (35) - HYDRAULIC SYSTEMS
35.355.ap
1
2
35.357.aq 01
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHJ2623

HOSE

9mm ID x 1000mm, to Manifold

1шт.

2

KHJ25910

HYDRAULIC HOSE

9mm ID x 1050mm, to Solenoid Valve

1шт.

Выбрано товаров: 2
