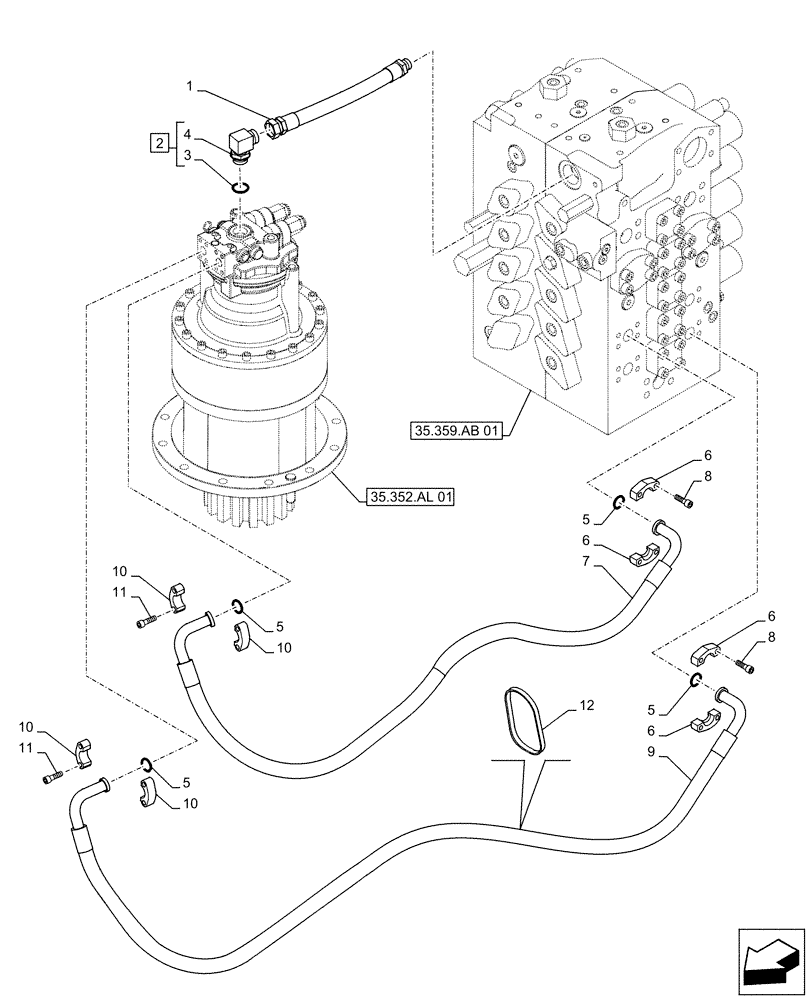

Запчасти Case CX490D LC (35.352.AI[03]) - MOTO-REDUCTION GEAR, LINES (35) - HYDRAULIC SYSTEMS
![Схема запчастей Case CX490D LC - (35.352.AI[03]) - MOTO-REDUCTION GEAR, LINES (35) - HYDRAULIC SYSTEMS](https://partsell.ru/storage/images/casece/5386741.png)
35.359.ab 01
5
10
3
11
11
2
5
6
6
8
7
8
5
5
1
10
10
10
6
6
4
12
9
35.352.al 01
№
Артикул
Название
Примечание
Количество
1
KTJ2069
HYDRAULIC HOSE,31.80 mm ID x 510.00 mm
35mm ID x 510mm, from Moto reduction gear to Valve Control
1шт.
2
157582A1
ELBOW,90 Degree, 1 1/4" O-Ring x 1 1/4"
ASSY, Incl 3, 4
1шт.
3
150583A1
O-RING
1шт.
4
NSS
NOT SOLD SEPARAT
Elbow, Incl in 2
1шт.
5
162246A1
O-RING
4шт.
6
153459A1
FLANGE
4шт.
7
KTJ16770
HYDRAULIC HOSE
25mm ID x 1250mm, from Moto reduction gear to Valve Control
1шт.
8
862-10035
HEX SOC SCREW,M10 x 35mm, Cl 12.9
8шт.
9
KTJ16760
HYDRAULIC HOSE
25mm ID x 1480mm, from Moto reduction gear to Valve Control
1шт.
10
150561A1
FLANGE
4шт.
11
862-12040
HEX SOC SCREW,M12 x 40mm, Cl 12.9
8шт.
12
150496A1
MOUNTING CLIP
250mm
2шт.
Выбрано товаров: 12
