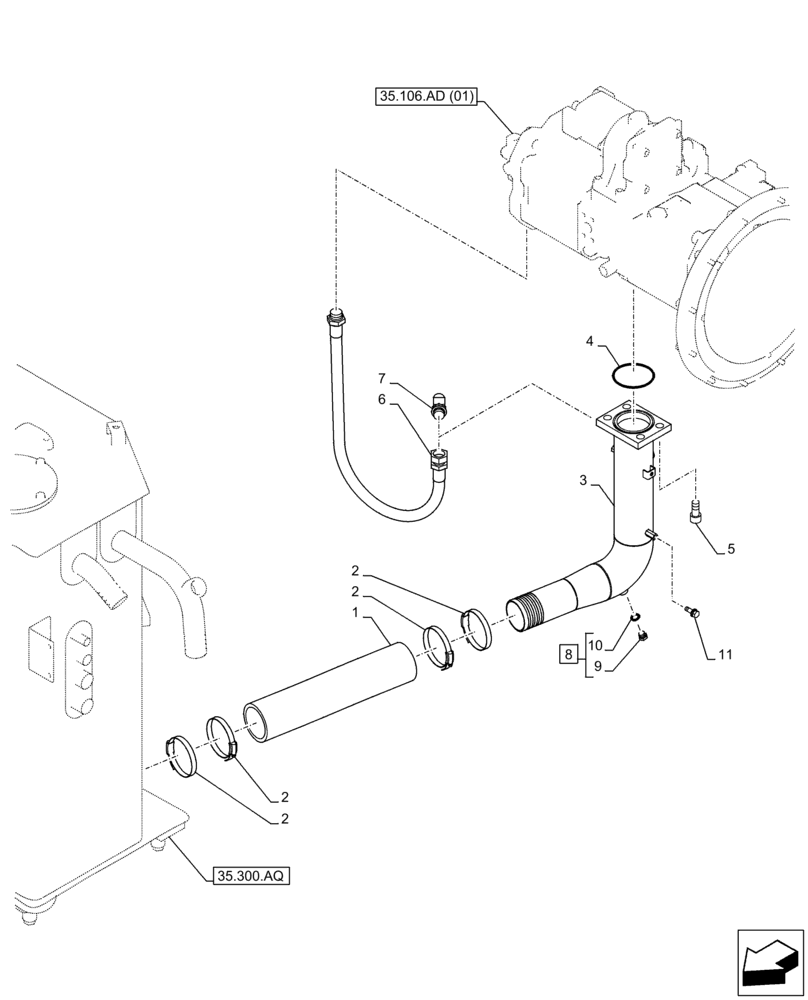

Запчасти Case CX350D LC (35.106.AO[02]) - VARIABLE DELIVERY HYDRAULIC PUMP, SUCTION PIPE (35) - HYDRAULIC SYSTEMS

1

KBJ0346

HOSE

1шт.

2

KHJ32620

CLIP

1шт.

3

KSJ18341

PIPE

1шт.

4

154705A1

O-RING

1шт.

5

862-16035

HEX SOC SCREW,M16 x 35mm, Cl 12.9

M16 x 35mm

4шт.

6

KSJ18350

HYDRAULIC HOSE

1шт.

7

ABV0829

TEE

1шт.

8

159002A1

PLUG

ASSY, Incl 9 - 10

1шт.

9

NSS

NOT SOLD SEPARAT

Plug, Incl in 8

1шт.

10

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

11

KHJ1215

BOLT,Spcl

1шт.
