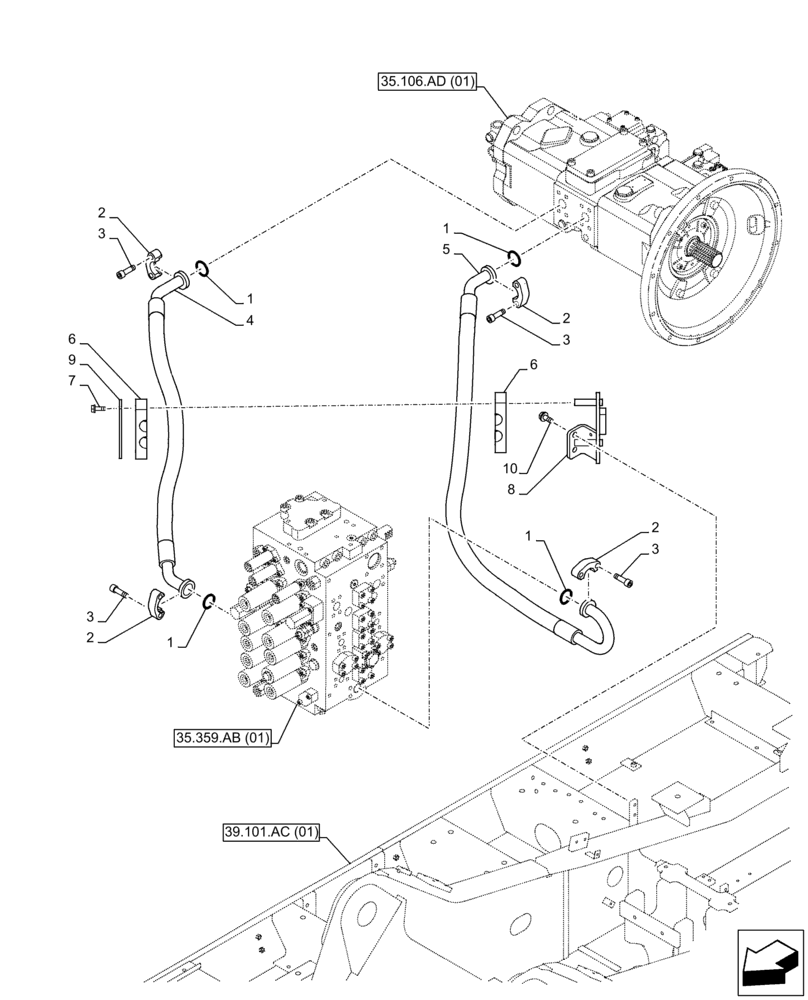

Запчасти Case CX350D LC (35.106.AO[01]) - VARIABLE DELIVERY HYDRAULIC PUMP, PRESSURE PIPE (35) - HYDRAULIC SYSTEMS

1

155211A1

O-RING

4шт.

2

150561A1

FLANGE

8шт.

3

862-12040

HEX SOC SCREW,M12 x 40mm, Cl 12.9

16шт.

4

KSJ20780

HYDRAULIC HOSE

25mm ID x 1160mm

1шт.

5

KSJ18370

HYDRAULIC HOSE

25mm ID x 1440mm

1шт.

6

153237A1

HOSE CLAMP

2шт.

7

166347A1

BOLT,Sems, M10 x 30mm

2шт.

8

KSJ20770

BRACKET

, Serial Range: -C0358

1шт.

8

KSJ20771

BRACKET

, Start Serial: D0358

1шт.

9

KSJ20720

PLATE

1шт.

10

166352A1

BOLT

M12 x 30mm

2шт.
