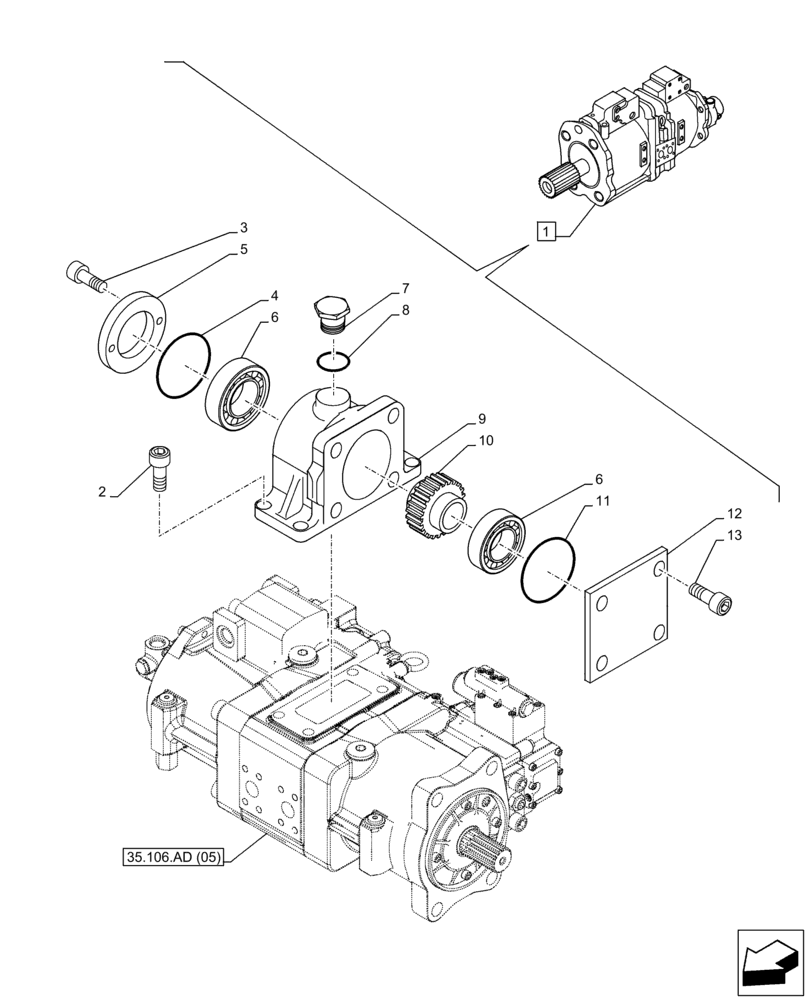

Запчасти Case CX350D LC (35.106.AN) - VAR - 461863 - HYDRAULIC PUMP, PTO, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, COMPONENTS (35) - HYDRAULIC SYSTEMS

1

KSJ18301

HYDRAULIC PUMP

ASSY, Incl 2 - 13

1шт.

See also Figure 35.106.AD (05), 35.106.AD (06), 35.106.AD (07), 35.106.AD (08), 35.357.AC (02), 35.106.AL (02)

1шт.

2

862-12030

HEX SOC SCREW,M12 x 30mm, Cl 12.9

4шт.

3

863-10020

HEX SOC SCREW,M10 x 20mm, Cl 12.9

2шт.

4

154697A1

O-RING

1шт.

5

NSS

NOT SOLD SEPARAT

Cover, Incl in 1

1шт.

6

NSS

NOT SOLD SEPARAT

Bearing, Incl in 1

2шт.

7

155471A1

PLUG

1шт.

8

154503A1

O-RING

1шт.

9

NSS

NOT SOLD SEPARAT

Body, Incl in 1

1шт.

10

NSS

NOT SOLD SEPARAT

Gear, Incl in 1

1шт.

11

154733A1

O-RING

1шт.

12

LW005330

COVER

1шт.

13

861-12025

HEX SOC SCREW,M12 x 25mm, Cl 12.9

4шт.
