(35.106.AL[01]) - VARIABLE DELIVERY HYDRAULIC PUMP, PROPORTIONAL, VALVE

Запчасти Case CX350D LC (35.106.AL[01]) - VARIABLE DELIVERY HYDRAULIC PUMP, PROPORTIONAL, VALVE (35) - HYDRAULIC SYSTEMS

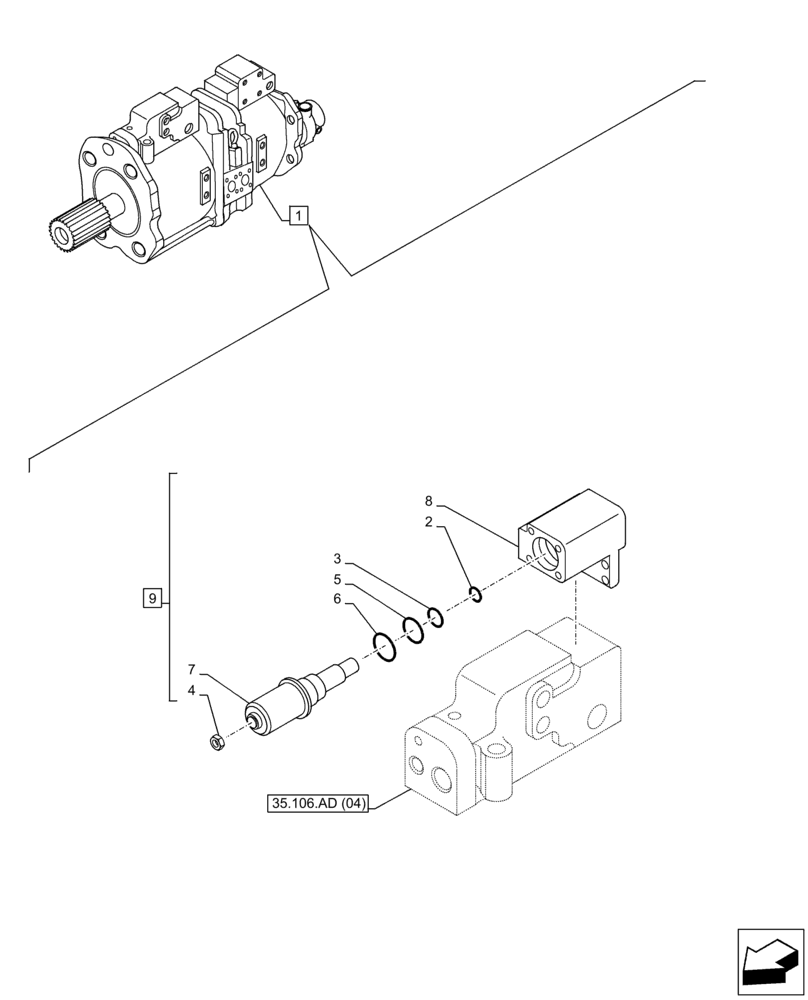

Схема запчастей Case CX350D LC - (35.106.AL[01]) - VARIABLE DELIVERY HYDRAULIC PUMP, PROPORTIONAL, VALVE (35) - HYDRAULIC SYSTEMS
7
1
8
6
3
9
2
4
5
35.106.ad (04)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KSJ18291

HYDRAULIC PUMP

ASSY, Incl 2 - 9

1шт.

See also Figure 35.106.AD (01), 35.106.AD (02), 35.106.AD (03), 35.106.AD (04), 35.357.AC (01)

1шт.

2

155203A1

O-RING

2шт.

3

155204A1

O-RING

2шт.

4

LA010930

SPECIAL NUT

2шт.

5

160652A1

O-RING

2шт.

6

154491A1

O-RING

2шт.

7

NSS

NOT SOLD SEPARAT

Body, Incl in 9

1шт.

8

NSS

NOT SOLD SEPARAT

Valve, Incl in 9

1шт.

9

LJ022310

VALVE

ASSY, Incl 2 - 8

2шт.
