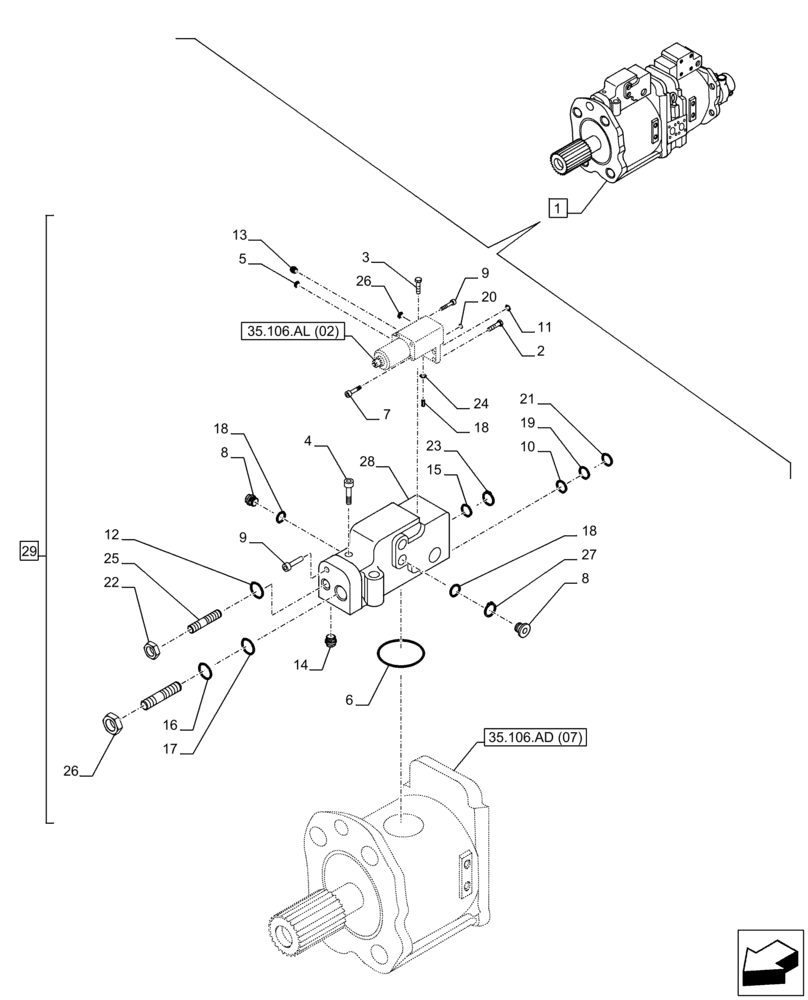

Запчасти Case CX350D LC (35.106.AD[08]) - VAR - 461863 - VARIABLE DELIVERY HYDRAULIC PUMP, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, COMPONENTS (35) - HYDRAULIC SYSTEMS

1

KSJ18301

HYDRAULIC PUMP

ASSY, Incl 2 - 29

1шт.

See also Figure 35.106.AD (05), 35.106.AD (06), 35.106.AD (07), 35.106.AL (02), 35.357.AC (02), 35.106.AN

1шт.

2

861-6025

HEX SOC SCREW,M6 x 25mm, Cl 12.9

10шт.

3

861-8070

HEX SOC SCREW,M8 x 70mm, Cl 12.9

4шт.

4

108R008Z050N

BOLT

4шт.

5

LE013460

O-RING

6шт.

5

LE013520

O-RING

2шт.

6

LE013390

O-RING

2шт.

7

LA010920

BOLT,Hex Skt Hd

4шт.

8

155496A1

PLUG

6шт.

9

862-6020

HEX SOC SCREW,M6 x 20mm, Cl 12.9

16шт.

10

154501A1

O-RING

2шт.

11

LE013400

O-RING

2шт.

12

154489A1

O-RING

2шт.

13

LK006340

PLUG

8шт.

14

LK00003

PLUG

28шт.

15

LE013380

O-RING

2шт.

16

LE013540

O-RING

2шт.

17

LE013450

O-RING

2шт.

18

154469A1

O-RING

14шт.

19

154493A1

O-RING

2шт.

20

LE022170

SEAL

16шт.

21

LE013420

O-RING

2шт.

22

LA00065

JAM NUT

2шт.

23

800-1110

SNAP RING,M10, Ext

2шт.

24

LJ020950

VALVE

4шт.

25

LA00759

BOLT,Hex Skt Hd

2шт.

26

LA010640

JAM NUT

2шт.

27

800-2115

SNAP RING,M15, Int

4шт.

28

NSS

NOT SOLD SEPARAT

Body, Incl in 29

1шт.

29

LJ022300

REGULATOR

ASSY, Incl 2 - 28

1шт.

See also Figure 35.106.AL (02)

1шт.
