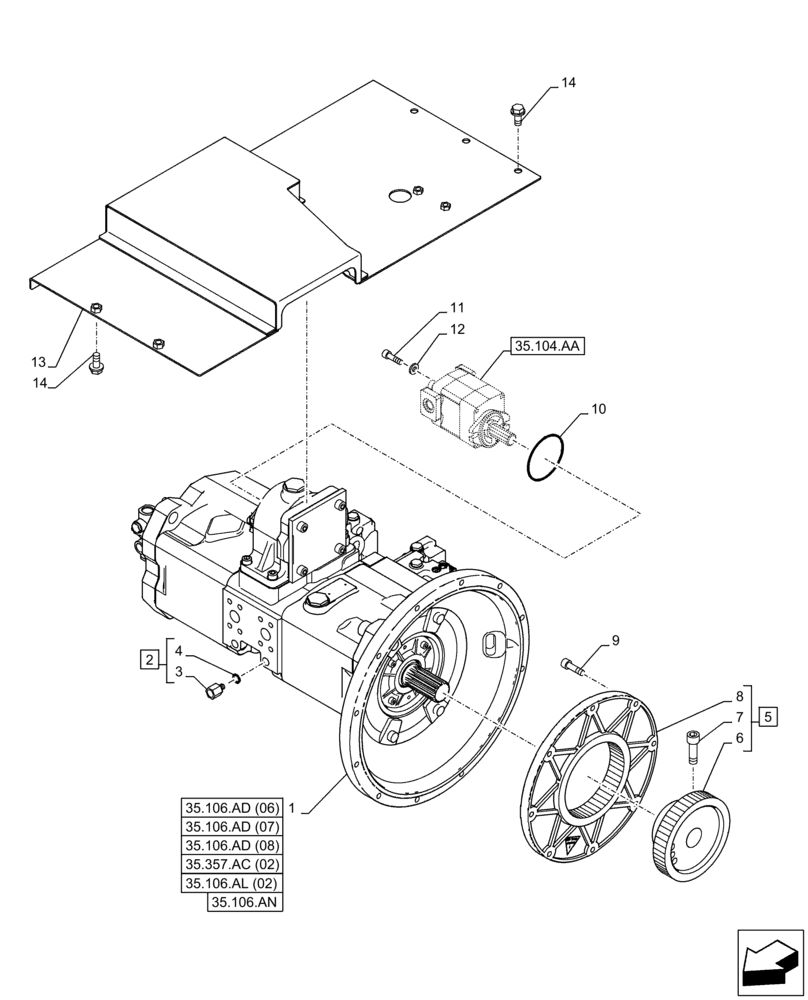

Запчасти Case CX350D LC (35.106.AD[05]) - VAR - 461863 - VARIABLE DELIVERY HYDRAULIC PUMP, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

1

KSJ18301

HYDRAULIC PUMP

ASSY, Hydraulic pump

1шт.

See also Figure 35.106.AD (06), 35.106.AD (07), 35.106.AD (08), 35.106.AL (02), 35.357.AC (02), 35.106.AN

1шт.

2

KHJ18180

STUD

ASSY, Incl 3 - 4

2шт.

3

NSS

NOT SOLD SEPARAT

Fitting, Incl in 2

2шт.

4

154467A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

5

KSJ12612

COUPLING FLANGE

ASSY, Incl 6 - 8

1шт.

6

KSJ12622

HUB

1шт.

7

KSJ16860

BOLT

1шт.

8

KTJ2234

FLANGE

1шт.

9

862-10035

HEX SOC SCREW,M10 x 35mm, Cl 12.9

8шт.

10

154697A1

O-RING

1шт.

11

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

2шт.

12

150409A1

WASHER

2шт.

13

KSN19160

COVER

1шт.

14

166352A1

BOLT

5шт.
