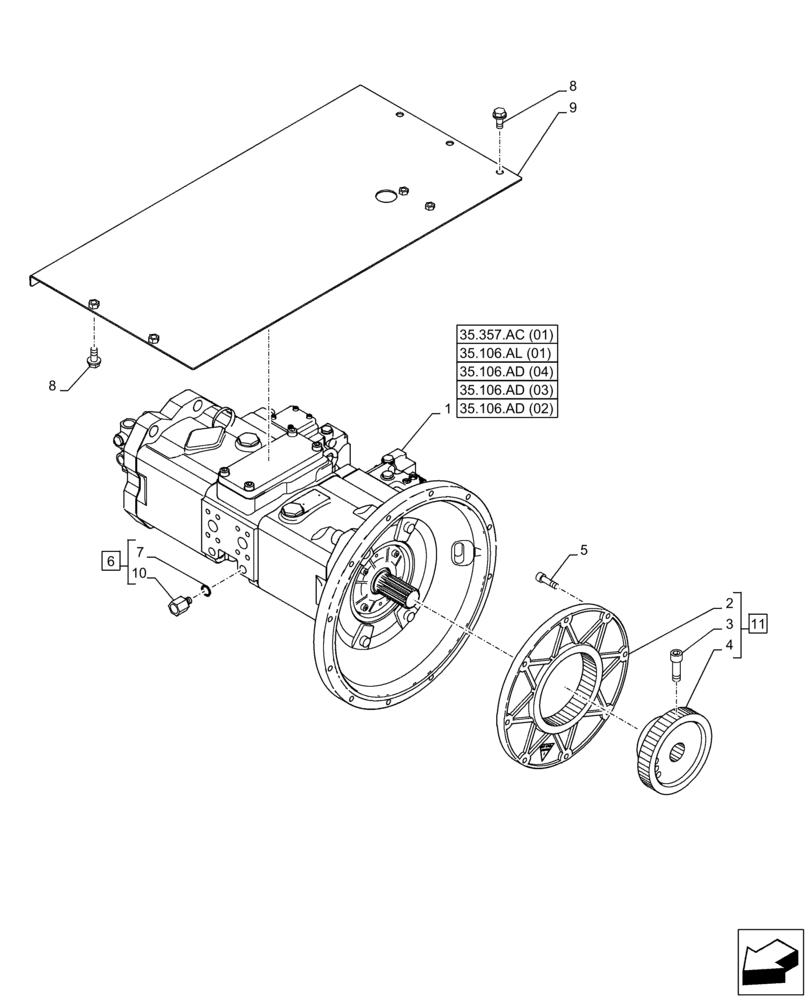

Запчасти Case CX350D LC (35.106.AD[01]) - VARIABLE DELIVERY HYDRAULIC PUMP (35) - HYDRAULIC SYSTEMS

1

KSJ18291

HYDRAULIC PUMP

ASSY, Hydraulic pump

1шт.

See also Figure 35.106.AD (02), 35.106.AD (03), 35106.AD (04), 35.106.AL (01), 35.357.AC (01)

1шт.

2

KTJ2234

FLANGE

1шт.

3

KSJ12860

BOLT

1шт.

4

KSJ12622

HUB

1шт.

5

862-10035

HEX SOC SCREW,M10 x 35mm, Cl 12.9

8шт.

6

KHJ18180

STUD

ASSY, Incl 7, 10

2шт.

7

154467A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

8

166352A1

BOLT

M12 x 30mm

5шт.

9

KSN20160

COVER

1шт.

10

NSS

NOT SOLD SEPARAT

Fitting, Incl in 6

2шт.

11

KSJ12612

COUPLING FLANGE

ASSY, Incl 2 - 4

1шт.
