(35.106.AB[02]) - VAR - 461863 - VARIABLE DELIVERY HYDRAULIC PUMP, FLANGE, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL

Запчасти Case CX350D LC (35.106.AB[02]) - VAR - 461863 - VARIABLE DELIVERY HYDRAULIC PUMP, FLANGE, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

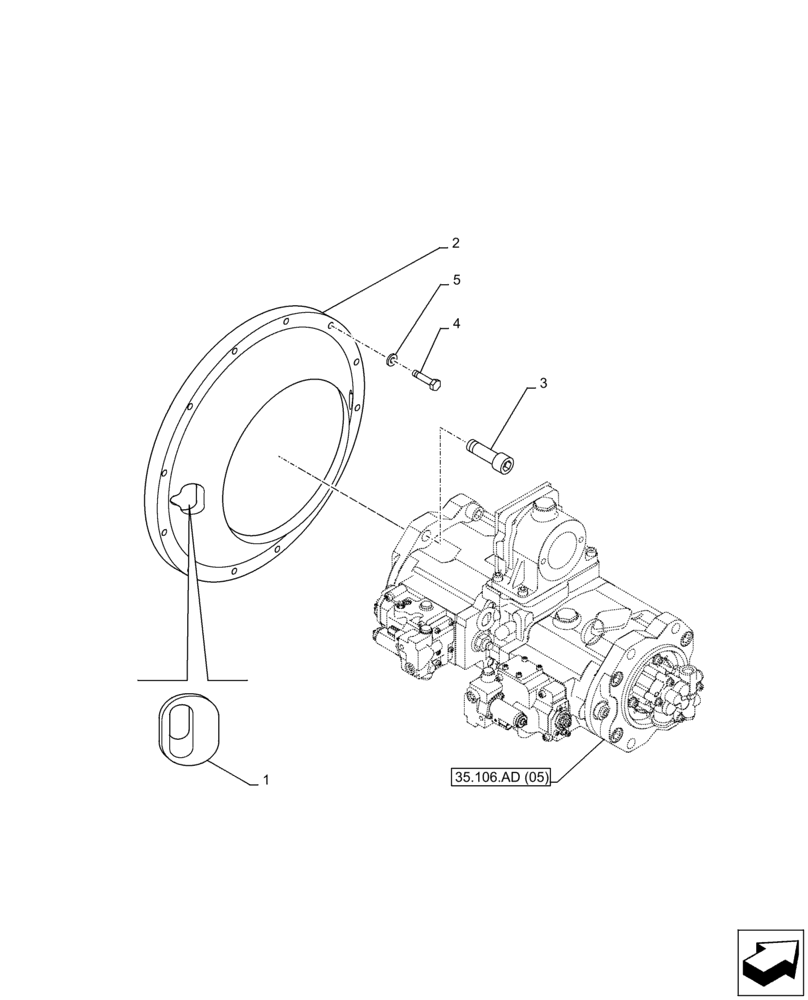

Схема запчастей Case CX350D LC - (35.106.AB[02]) - VAR - 461863 - VARIABLE DELIVERY HYDRAULIC PUMP, FLANGE, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS
4
2
3
1
5
35.106.ad (05)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KSJ18020

GROMMET

2шт.

2

KTJ2041

FLANGE

1шт.

3

108R020Y065R

BOLT

M20 X 65mm

4шт.

4

827-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9

M10 x 45mm

12шт.

5

150409A1

WASHER

12шт.
