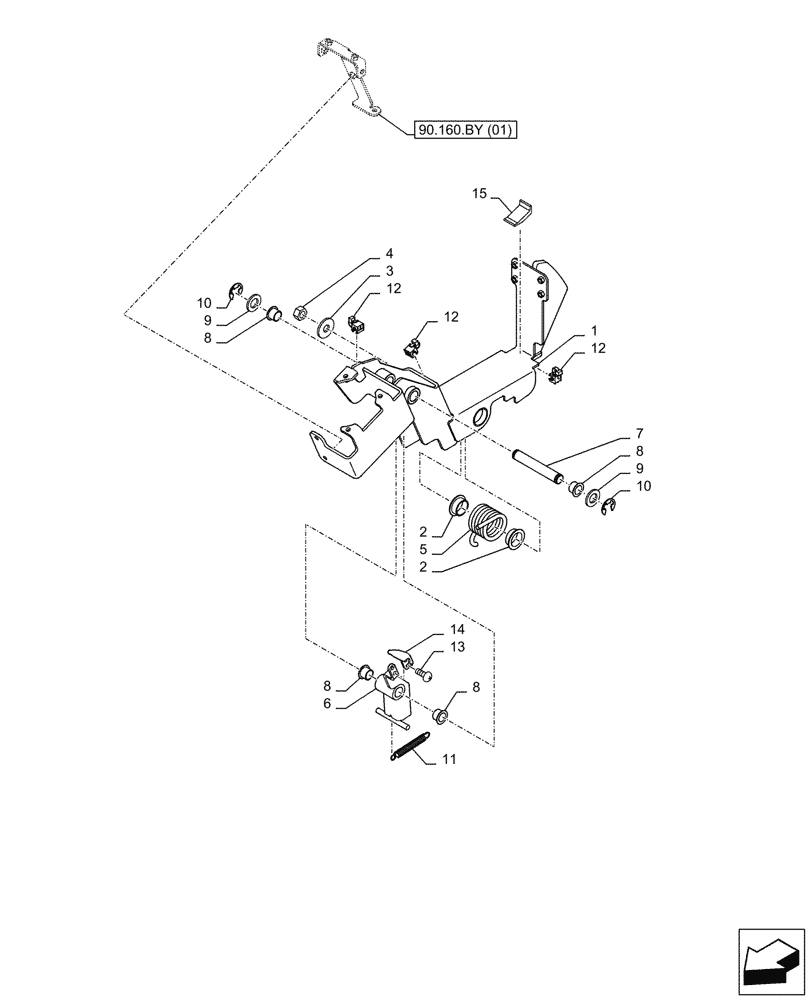

Запчасти Case CX350D LC (90.160.BY[02]) - VAR - 781277, 488035 - CONSOLE SIDE PANEL, RH (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

KHN39730

FRAME

, Serial Range: -C0421

1шт.

1

KHN39731

FRAME

, Start Serial: D0421

1шт.

2

KHN2261

BUSHING

2шт.

3

151161A1

WASHER

1шт.

4

829-1412

NUT,M12, Cl 10.9

1шт.

5

KHN24001

SPRING

1шт.

6

KHN24041

BELLCRANK

1шт.

7

KHN24060

PIN

1шт.

8

KHN2249

BUSHING

4шт.

9

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

2шт.

10

KHN2270

LOCKING RING

2шт.

11

KHN26200

SPRING

1шт.

12

KHN17050

CLIP

3шт.

13

KHN23760

SCREW

3шт.

14

KHN12360

LEVER

1шт.

15

KHN43110

SEAL

, Start Serial: D0421

1шт.
