(90.160.BY[01]) - VAR - 781277, 488035 - CONSOLE SIDE PANEL, RH

Запчасти Case CX350D LC (90.160.BY[01]) - VAR - 781277, 488035 - CONSOLE SIDE PANEL, RH (90) - PLATFORM, CAB, BODYWORK AND DECALS

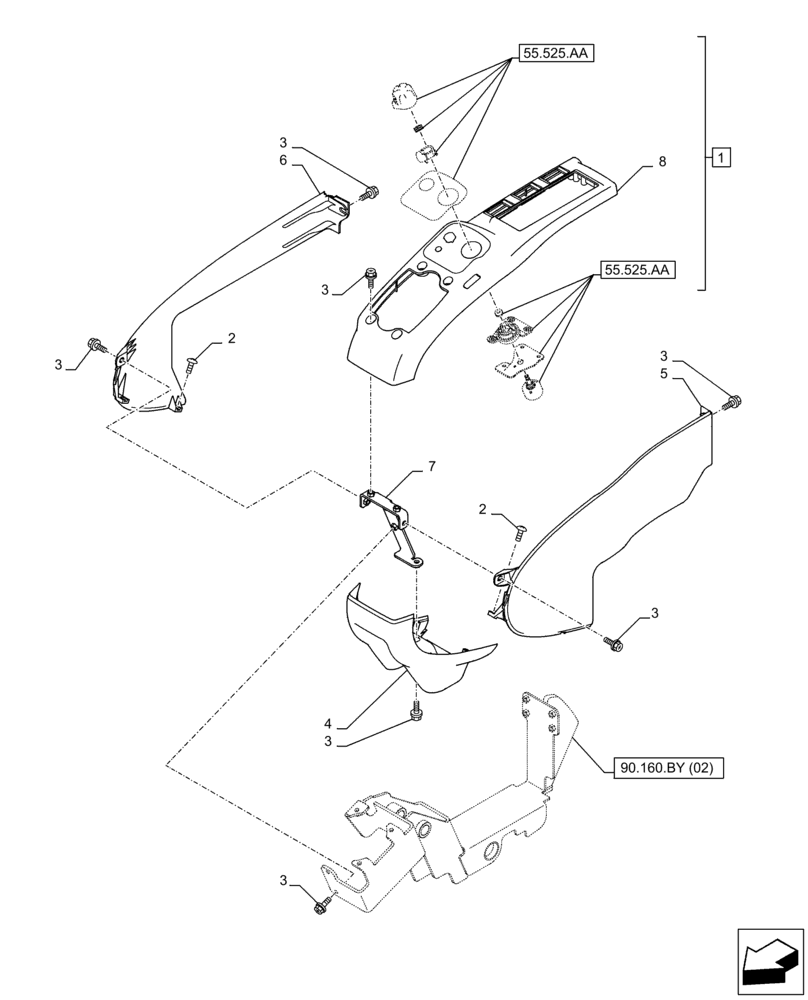

Схема запчастей Case CX350D LC - (90.160.BY[01]) - VAR - 781277, 488035 - CONSOLE SIDE PANEL, RH (90) - PLATFORM, CAB, BODYWORK AND DECALS
6
4
3
3
55.525.aa
7
1
3
2
3
3
5
8
90.160.by (02)
55.525.aa
3
3
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHN42840

ASSY, Incl 8

1шт.

See also figure 55.525.AA

1шт.

2

KHR2737

SELF-TAP SCREW

4шт.

3

KHN2132

BOLT,Hex Flg Hd, M6 x 16

9шт.

4

KHN23160

COVER

1шт.

5

KHN23200

COVER

1шт.

6

KHN23210

COVER

1шт.

7

KHN24100

BRACKET, SUPPORTING

1шт.

8

KHN42490

COVER

1шт.
