(90.151.AD[01]) - VAR - 781277 - SEAT, SAFETY BELT

Запчасти Case CX350D LC (90.151.AD[01]) - VAR - 781277 - SEAT, SAFETY BELT (90) - PLATFORM, CAB, BODYWORK AND DECALS

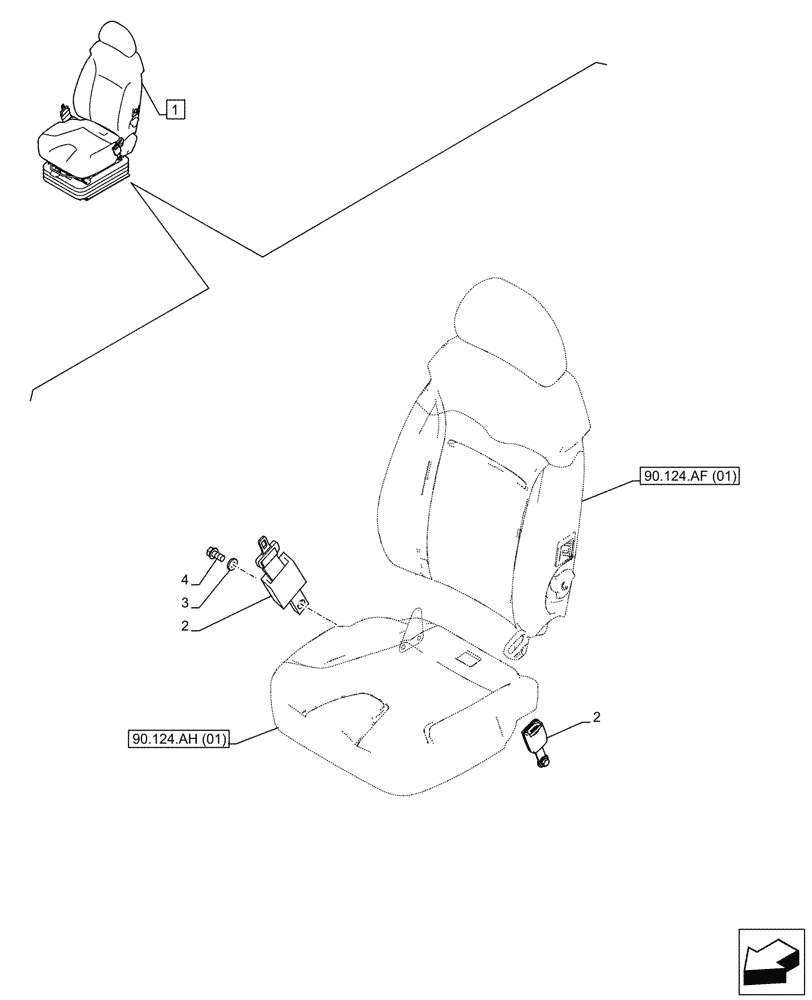

Схема запчастей Case CX350D LC - (90.151.AD[01]) - VAR - 781277 - SEAT, SAFETY BELT (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.124.af (01)
2
3
4
2
1
90.124.ah (01)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHN42782

DRIVER SEAT

ASSY, Incl 2 - 4

1шт.

See also Figure 90.124.AF (01), 90.124.AH (01), 90.124.AL (02), 90.124.AN (01), 90.124.AE (01)

1шт.

2

KHN40120

SEAT BELT

1шт.

3

KHN40100

WASHER

2шт.

4

KHN40110

BOLT

2шт.
