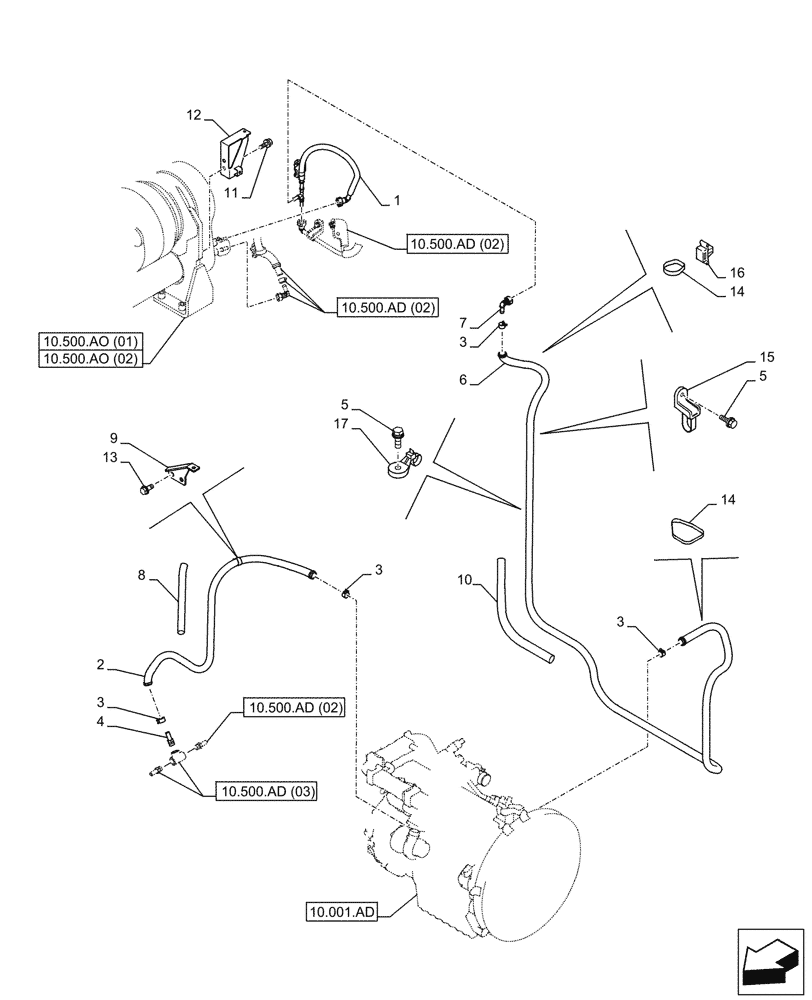

Запчасти Case CX350D LC (10.500.AD[01]) - DEF/ADBLUE™ LINES (10) - ENGINE
![Схема запчастей Case CX350D LC - (10.500.AD[01]) - DEF/ADBLUE™ LINES (10) - ENGINE](https://partsell.ru/storage/images/casece/5300033.png)
3
15
2
10.500.ao (01)
13
14
17
1
3
3
16
10.500.ad (02)
12
5
9
10.001.ad
10.500.ad (03)
10
5
4
7
3
11
14
6
10.500.ad (02)
10.500.ad (02)
8
10.500.ao (02)
1
KSH14820
PIPE
1шт.
2
KHH16090
HOSE
11mm ID x 1100mm
1шт.
3
KHH16800
BAND
1шт.
4
KRR21150
NIPPLE
3шт.
5
KHJ1215
BOLT,Spcl
1шт.
6
KHH17790
HOSE
11mm ID x 3100mm
1шт.
7
KHH15490
ELBOW
1шт.
8
158062A1
PLASTIC-RUBBER TUBE
19mm ID x 1000mm
1шт.
9
KBH14990
BRACKET
1шт.
10
158069A1
PLASTIC-RUBBER TUBE
19mm ID x 3000mm
1шт.
11
167182A1
BOLT,Sems, M8 x 25mm
M8 x 25mm
2шт.
12
KSH14990
BRACKET
1шт.
13
166352A1
BOLT
M12 x 30mm
2шт.
14
150496A1
MOUNTING CLIP
1шт.
15
KHR2581
CLAMP
4шт.
16
KHR10220
MOUNTING CLIP
1шт.
17
KHR2584
CLAMP
1шт.
