(90.124.AO) - VAR - 488035 - SEAT, AIR SUSPENSION, HANDLE

Запчасти Case CX350D LC (90.124.AO) - VAR - 488035 - SEAT, AIR SUSPENSION, HANDLE (90) - PLATFORM, CAB, BODYWORK AND DECALS

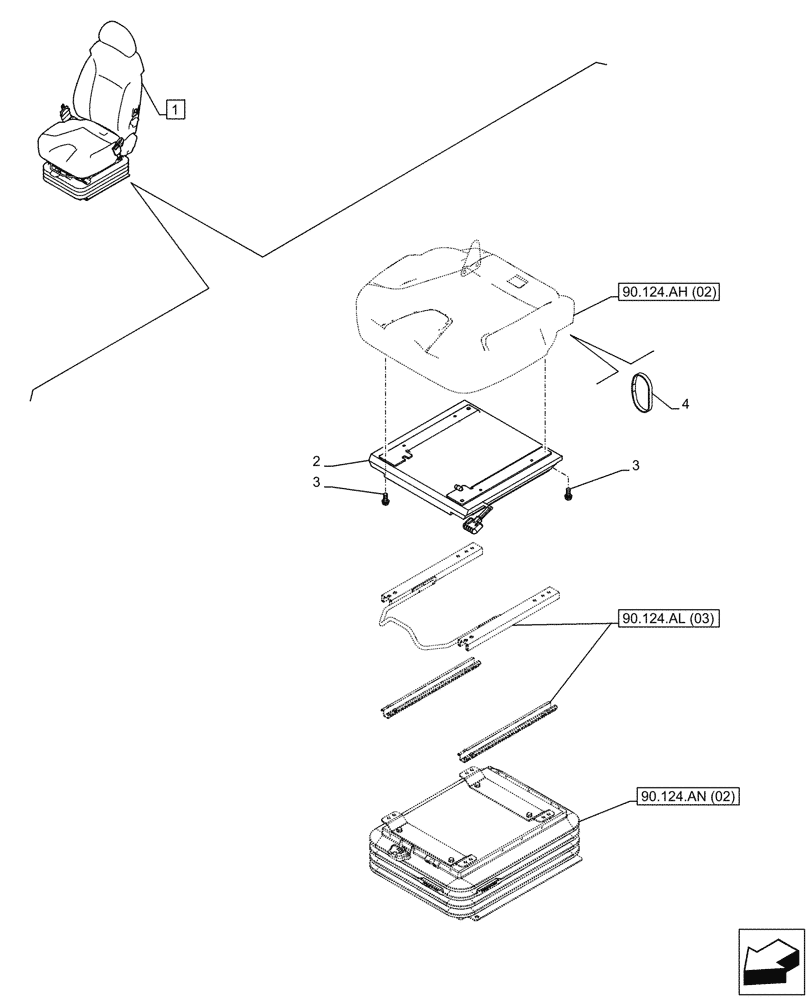

Схема запчастей Case CX350D LC - (90.124.AO) - VAR - 488035 - SEAT, AIR SUSPENSION, HANDLE (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.124.al (03)
4
3
2
1
3
90.124.ah (02)
90.124.an (02)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHN42802

DRIVER SEAT

ASSY, Incl 2 - 4

1шт.

See also Figure 90.124.AF (02), 90.124.AH (02), 90.124.AL (03), 90.124.AN (02), 90.124.AE (02), 90.151.AD (02)

1шт.

2

KHN43080

KIT

1шт.

3

KHN40220

BOLT

12шт.

4

KHN45020

BAND

1шт.

Выбрано товаров: 5
