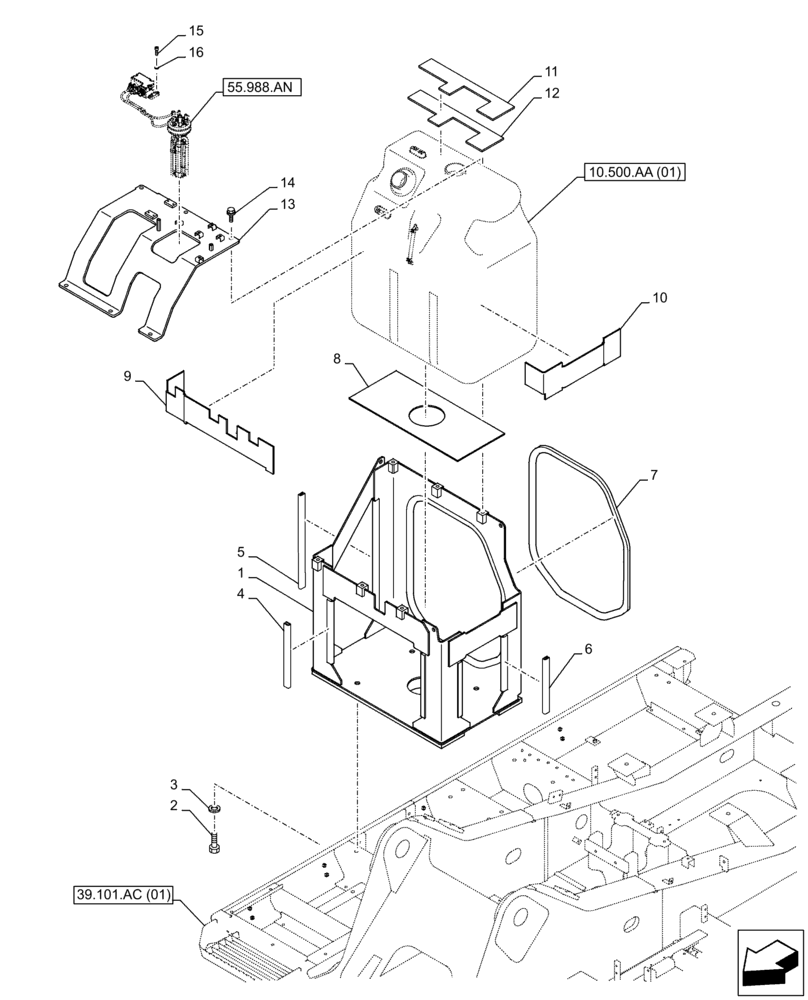

Запчасти Case CX350D LC (10.500.AA[02]) - DEF/ADBLUE™ TANK, MOUNTING (10) - ENGINE

1

KSH13990

BRACKET

1шт.

2

627-16030

BOLT,Hex, M16 x 2 x 30mm, Cl 10.9, Full Thd

M16 x 30mm

4шт.

3

157548A1

WASHER

4шт.

4

KSH14561

SEAL PROTECTION

300mm

3шт.

5

KSH14571

SEAL PROTECTION

560mm

1шт.

6

KSH14551

SEAL PROTECTION

260mm

2шт.

7

KSH14581

SEAL PROTECTION

1980mm

1шт.

8

KSH14700

PLATE

1шт.

9

KSH14600

PLATE

1шт.

10

KSH14610

PLATE

1шт.

11

KSH14680

SEAL

1шт.

12

KSH14690

PLATE

1шт.

13

KSH13880

BRACKET

1шт.

14

105R012Y025R

BOLT

M12 x 25mm

6шт.

15

108R006Y020R

BOLT

M6 x 20mm

4шт.

16

183-106VR

SPRING WASHER

4шт.
