(90.124.AF[01]) - VAR - 781277 - SEAT BACK

Запчасти Case CX350D LC (90.124.AF[01]) - VAR - 781277 - SEAT BACK (90) - PLATFORM, CAB, BODYWORK AND DECALS

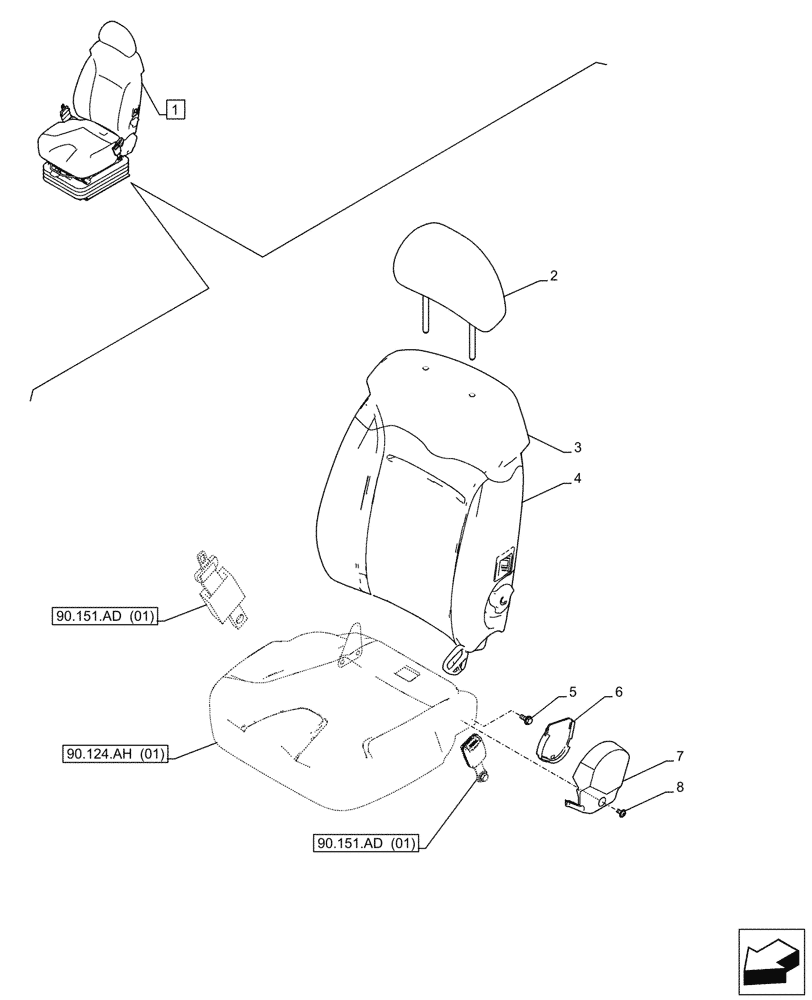

Схема запчастей Case CX350D LC - (90.124.AF[01]) - VAR - 781277 - SEAT BACK (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.124.ah (01)
1
7
8
5
2
4
6
3
90.151.ad (01)
90.151.ad (01)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHN42782

DRIVER SEAT

ASSY, Incl 2 - 8

1шт.

See also Figure 90.124.AE (01), 90.124.AH (01), 90.124.AL (02), 90.124.AN (01), 90.151.AD (01)

1шт.

2

KHN40280

SEAT HEADREST

, Serial Range: -C0420

1шт.

2

KHN40281

SEAT HEADREST

, Start Serial: D0420

1шт.

3

KHN17680

COVER

1шт.

4

KHN40752

SEAT BACK

1шт.

5

KHN40240

BOLT

4шт.

6

KHN40250

HINGE

1шт.

7

KHN40270

HINGE

1шт.

8

KHN40260

SCREW

2шт.
