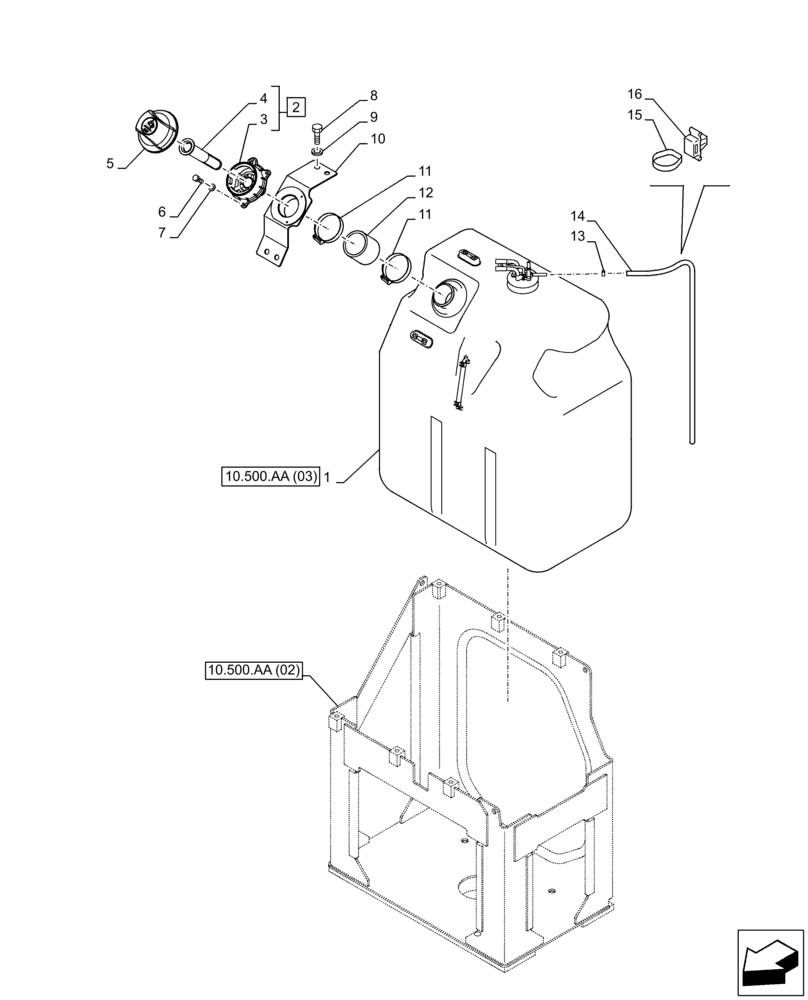

Запчасти Case CX350D LC (10.500.AA[01]) - DEF/ADBLUE™ TANK (10) - ENGINE

1

KSH13971

TANK

Tank Urea (150 Liter), ASSY, Serial Range: -C0345

1шт.

See also Figure 55.988.AN

1шт.

1

KSH16000

TANK

Tank Urea (150 Liter), ASSY, Start Serial: D0345

1шт.

See also Figure 55.988.AN

1шт.

2

KHH15591

FILTER

ASSY, Urea Tank, Incl 3 - 4

1шт.

3

KHH17420

BASE PLATE

1шт.

4

KHH16450

FILTER STRAINER

1шт.

5

KHH16980

FILLER CAP

1шт.

6

KHH15640

BOLT

M5 x 16mm

3шт.

7

KHH15650

WASHER

3шт.

8

102R008A016N

BOLT

M8 x 16mm

1шт.

9

KHH16160

WASHER

1шт.

10

KSH14000

BRACKET

1шт.

11

164968A1

COLLAR

2шт.

12

KSH12610

HOSE

1шт.

13

165951A1

CLAMP

1шт.

14

KHH0356

HOSE

850mm

1шт.

15

150496A1

MOUNTING CLIP

250mm

1шт.

16

KHR10220

MOUNTING CLIP

1шт.
