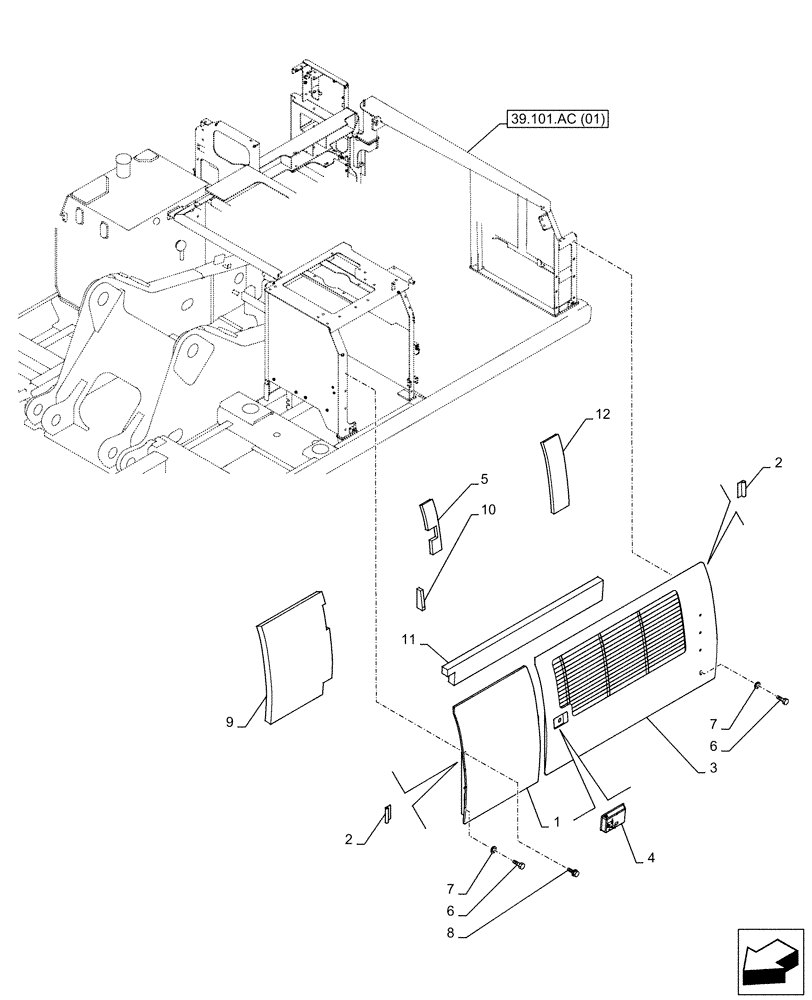

Запчасти Case CX350D LC (90.105.CO[02]) - SIDE, DOOR (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

KSN19141Y2

DOOR

ASSY, Incl 2 (Qty 2)

1шт.

2

KHN35880

HINGE

4шт.

3

KSN20220Y2

DOOR

ASSY, Incl 2 (Qty 2), 4, Years: -17-JUN-16

1шт.

3

KSN21550Y2

DOOR

ASSY, Incl 2 (Qty 2), 4, Start Year: 18-JUN-16

1шт.

4

KHN24520

LOCK

1шт.

5

KSN19670

INSULATION

1шт.

6

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

2шт.

7

151161A1

WASHER

2шт.

8

166352A1

BOLT

1шт.

9

KSN19750

INSULATION

1шт.

10

KSN17480

SEAL

1шт.

11

KSN19630

INSULATION

1шт.

12

KSN19680

INSULATION

1шт.
