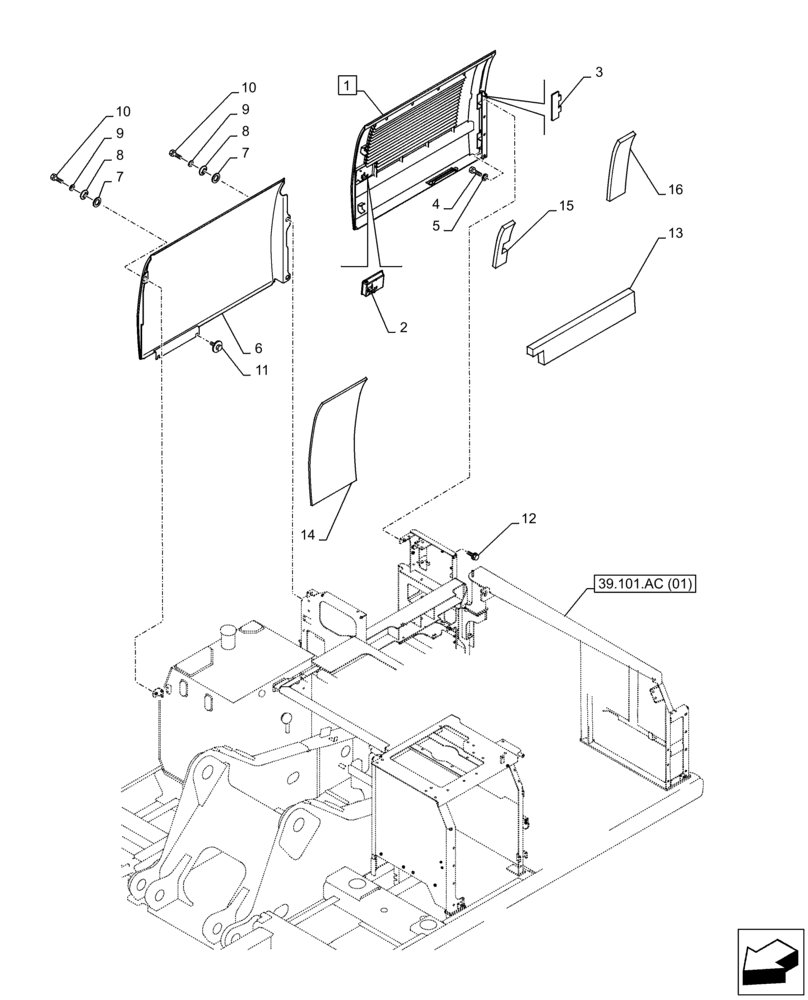

Запчасти Case CX350D LC (90.105.CO[01]) - SIDE, DOOR (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

KSN20230Y2

DOOR

ASSY, Incl 2 - 3, Years: -17-JUN-16

1шт.

1

KSN21560Y2

DOOR

ASSY, Incl 2 - 3, Start Year: 18-JUN-16

1шт.

2

KHN24520

LOCK

1шт.

3

KHN35880

HINGE

2шт.

4

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

3шт.

5

151161A1

WASHER

3шт.

6

KSN19151Y2

COVER

1шт.

7

KHN28760

RUBBER WASHER

3шт.

8

162409A1

WASHER

3шт.

9

150811A1

WASHER

3шт.

10

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

3шт.

11

KHN12020

BOLT,Spcl

2шт.

12

166352A1

BOLT

1шт.

13

KSN19640

INSULATION

1шт.

14

KSN19700

INSULATION

3шт.

15

KSN19690

INSULATION

1шт.

16

KSN19680

INSULATION

2шт.
