(90.105.BV[05]) - HOUSING & COVERS

Запчасти Case CX350D LC (90.105.BV[05]) - HOUSING & COVERS (90) - PLATFORM, CAB, BODYWORK AND DECALS

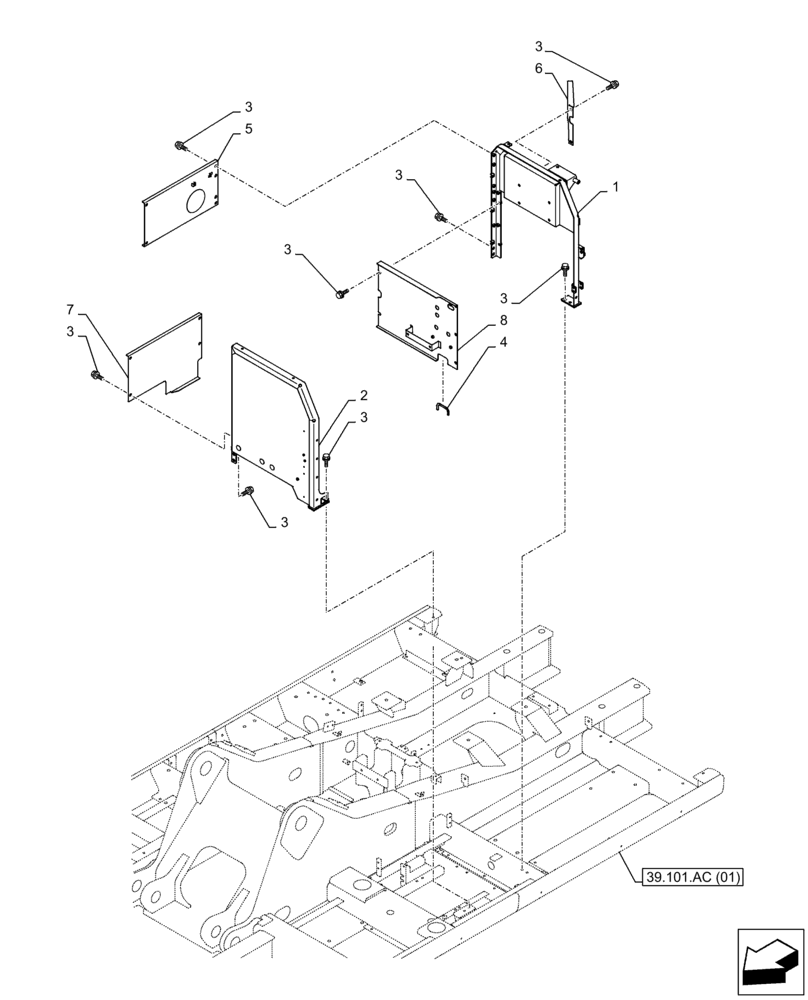

Схема запчастей Case CX350D LC - (90.105.BV[05]) - HOUSING & COVERS (90) - PLATFORM, CAB, BODYWORK AND DECALS
4
3
7
3
3
3
3
3
3
39.101.ac (01)
1
3
8
6
5
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KSN19921

FRAME

1шт.

2

KSN19070

FRAME

1шт.

3

166352A1

BOLT

23шт.

4

KNH0715

TRIM

1шт.

5

KSN19420

COVER

1шт.

6

KSN16590

COVER

1шт.

7

KSN19430

COVER

1шт.

8

KSN19800

COVER

1шт.
