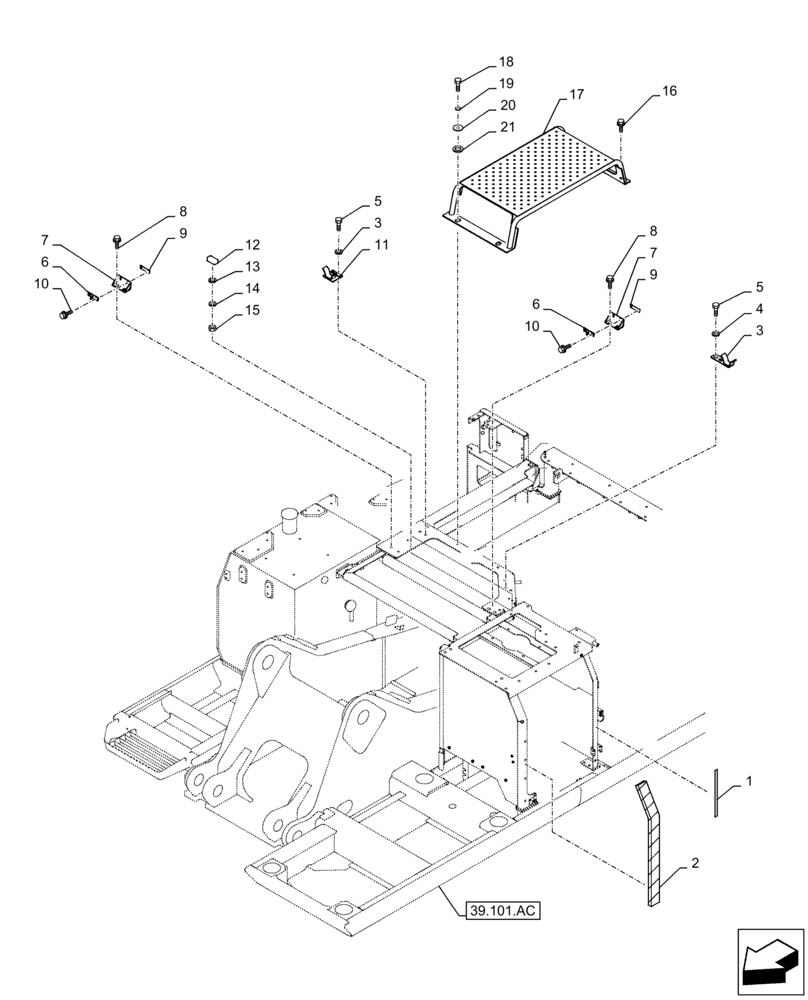

Запчасти Case CX350D LC (90.105.BV[01]) - HOUSING & COVERS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

KHN40990

RUBBER SEAL

, Start Serial: D0353

1шт.

2

KSN16910

SEAL

1шт.

3

KSN20080

BRACKET

1шт.

4

151161A1

WASHER

4шт.

5

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

4шт.

6

KHN39220

CATCH

2шт.

7

KSN20060

BRACKET

2шт.

8

105R012Y025R

BOLT

4шт.

9

KSN20070

PLATE

2шт.

10

167182A1

BOLT,Sems, M8 x 25mm

4шт.

11

KSN20090

BRACKET

1шт.

12

KSN20200

STOP

2шт.

13

153081A1

WASHER

4шт.

14

183-108VR

SPRING WASHER

4шт.

15

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

4шт.

16

166352A1

BOLT

2шт.

17

KSN19490

STEP

1шт.

18

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

2шт.

19

150811A1

WASHER

2шт.

20

KHN39350

WASHER

2шт.

21

KHN39340

WASHER

2шт.
