(88.100.55[38]) - DIA KIT, REAR VIEW CAMERA, LIGHT

Запчасти Case CX350D LC (88.100.55[38]) - DIA KIT, REAR VIEW CAMERA, LIGHT (88) - ACCESSORIES

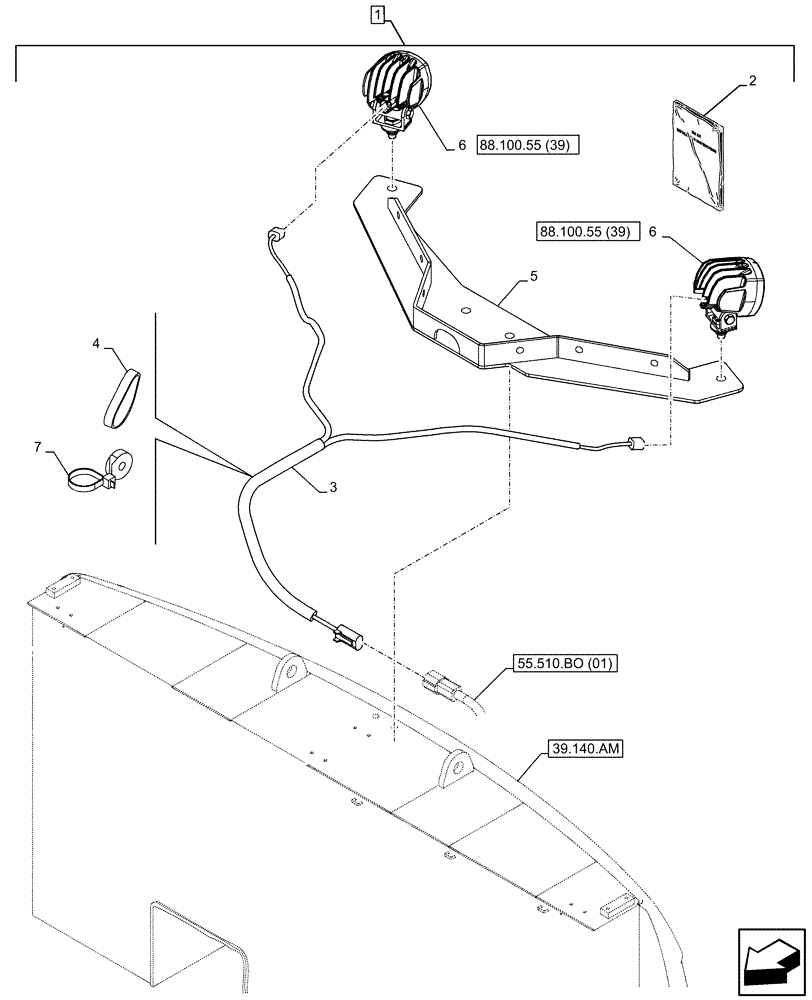

Схема запчастей Case CX350D LC - (88.100.55[38]) - DIA KIT, REAR VIEW CAMERA, LIGHT (88) - ACCESSORIES
6
39.140.am
88.100.55 (39)
1
2
6
5
55.510.bo (01)
4
3
7
88.100.55 (39)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG1SP139-00

CONSTRUCTION DIA

Rear View Camera, Light, Incl 2 - 7

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

47789011

INSTRUCTION

1шт.

2

47789042

INSTRUCTION

1шт.

3

KHR42540

WIRE HARNESS

1шт.

4

150496A1

MOUNTING CLIP

L=250mm

9шт.

5

KHR41821

BRACKET

1шт.

6

KHR37950

WORK LAMP

Led 24V, 13W, ASSY

2шт.

7

KHR2584

CLAMP

1шт.
