(88.100.55[21]) - DIA KIT, RIGHT, SIDE CAMERA, COVER

Запчасти Case CX350D LC (88.100.55[21]) - DIA KIT, RIGHT, SIDE CAMERA, COVER (88) - ACCESSORIES

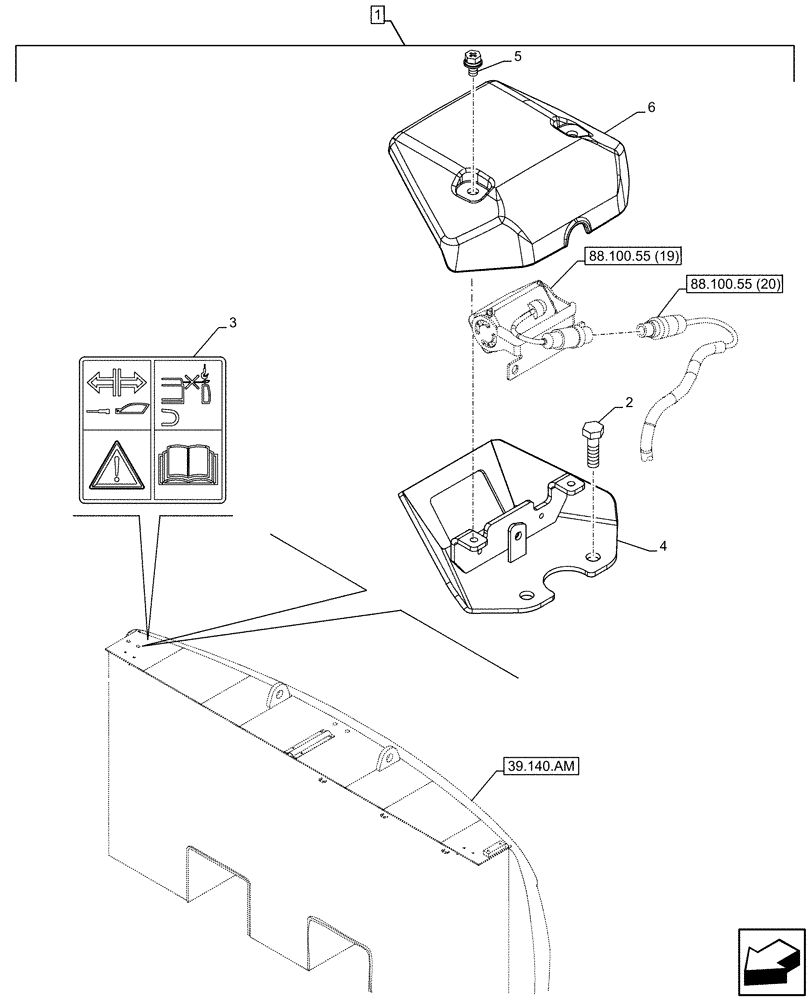

Схема запчастей Case CX350D LC - (88.100.55[21]) - DIA KIT, RIGHT, SIDE CAMERA, COVER (88) - ACCESSORIES
4
3
6
39.140.am
2
1
88.100.55 (20)
5
88.100.55 (19)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG1SP098-00

CONSTRUCTION DIA

Right Side Camera, Incl 2 - 6

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

166052A1

BOLT

M10 x 20mm

2шт.

3

KHP18460

DECAL

Camera Wiring Precautions

1шт.

4

KHR40230B1

BRACKET

1шт.

5

KHN2308

SCREW

2шт.

6

KHR39570

COVER

1шт.
