(88.100.55[20]) - DIA KIT, RIGHT, SIDE CAMERA, WIRE HARNESS

Запчасти Case CX350D LC (88.100.55[20]) - DIA KIT, RIGHT, SIDE CAMERA, WIRE HARNESS (88) - ACCESSORIES

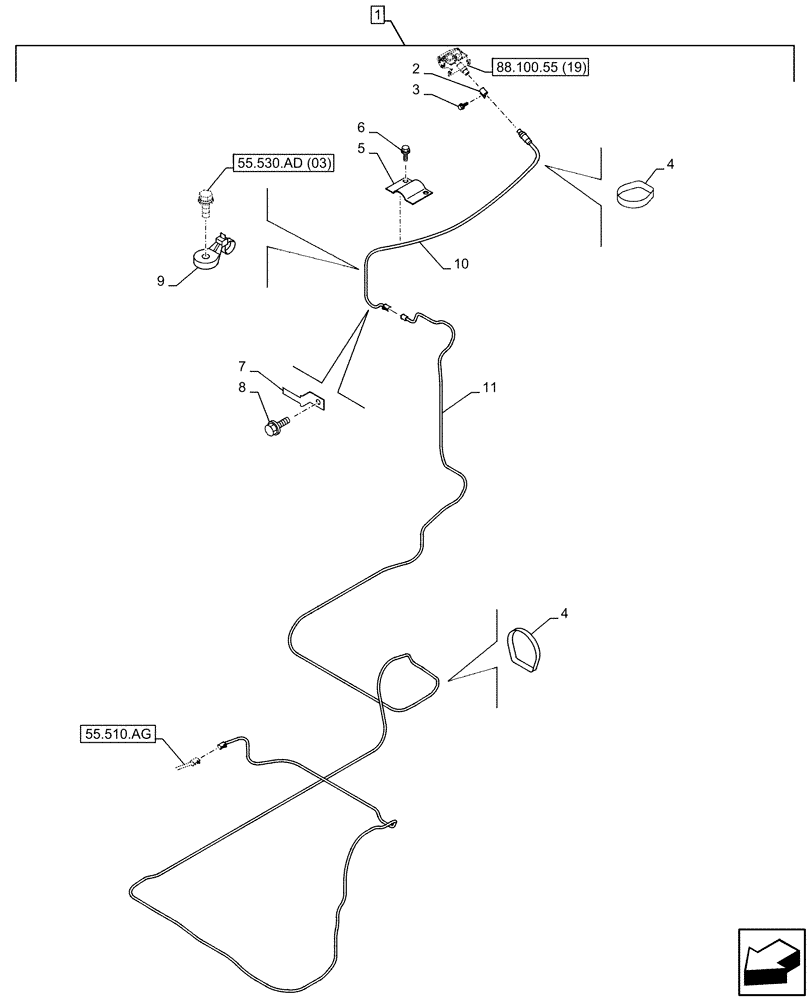

Схема запчастей Case CX350D LC - (88.100.55[20]) - DIA KIT, RIGHT, SIDE CAMERA, WIRE HARNESS (88) - ACCESSORIES
55.530.ad (03)
3
4
1
88.100.55 (19)
4
8
2
9
10
5
55.510.ag
11
7
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG1SP098-00

CONSTRUCTION DIA

Right Side Camera, Incl 2 - 11

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

157806A1

COLLAR

1шт.

3

KHN2132

BOLT,Hex Flg Hd, M6 x 16

1шт.

4

150496A1

MOUNTING CLIP

250mm

32шт.

5

KHR40370

COVER

1шт.

6

KHN2308

SCREW

2шт.

7

165405A1

CLIP

1шт.

8

159602A1

BOLT,Sems, Hex, M6 x 16mm

1шт.

9

KHR2584

CLAMP

1шт.

10

KHR39690

WIRE HARNESS

1шт.

11

KHR39710

WIRE HARNESS

1шт.
