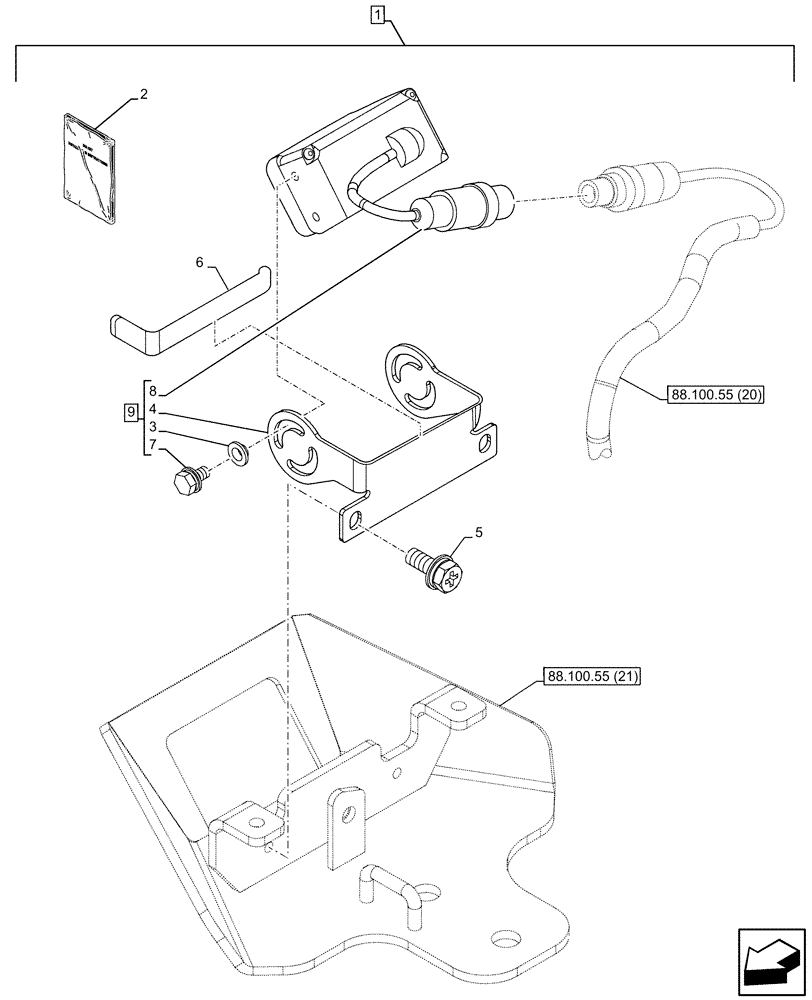

Запчасти Case CX350D LC (88.100.55[19]) - DIA KIT, RIGHT, SIDE CAMERA (88) - ACCESSORIES

1

KG1SP098-00

CONSTRUCTION DIA

Right Side Camera, Incl 2 - 9

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

47789009

INSTRUCTION

1шт.

2

47789040

INSTRUCTION

1шт.

3

KHR28200

BUSHING

4шт.

4

KHR28180

BRACKET

1шт.

5

KHN2132

BOLT,Hex Flg Hd, M6 x 16

M6 x 16mm

2шт.

6

ADH11140

TRIM

100mm

1шт.

7

KHR28190

BOLT

M4 x 10mm

4шт.

8

NSS

NOT SOLD SEPARAT

Camera, Incl in 9

1шт.

9

KHR23830

VIDEO CAMERA

ASSY, Incl 3, 4, 7, 8

1шт.
