(88.100.55[03]) - DIA KIT, REAR VIEW CAMERA, LIGHT

Запчасти Case CX350D LC (88.100.55[03]) - DIA KIT, REAR VIEW CAMERA, LIGHT (88) - ACCESSORIES

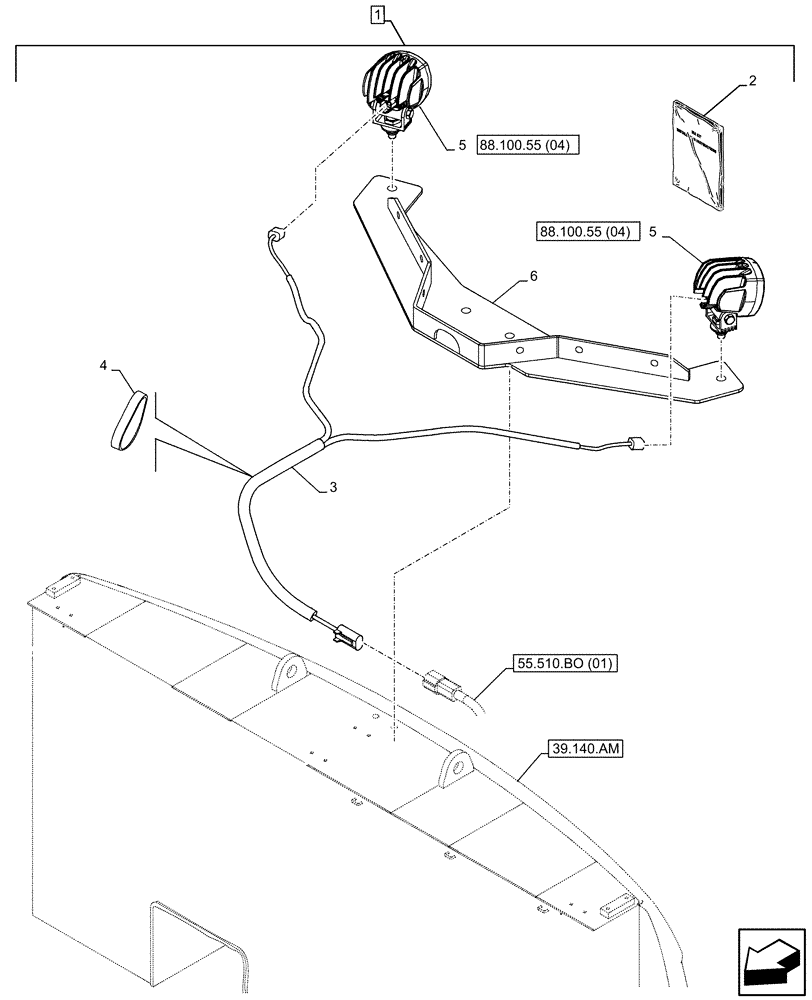

Схема запчастей Case CX350D LC - (88.100.55[03]) - DIA KIT, REAR VIEW CAMERA, LIGHT (88) - ACCESSORIES
5
4
3
2
88.100.55 (04)
55.510.bo (01)
6
88.100.55 (04)
5
39.140.am
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG1SP126-00

CONSTRUCTION DIA

Rear View Camera, Light, Incl 2 - 6

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

47789010

INSTRUCTION

1шт.

2

47789041

INSTRUCTION

1шт.

3

KHR42960

WIRE HARNESS

1шт.

4

150496A1

MOUNTING CLIP

250mm

6шт.

5

KHR37950

WORK LAMP

Led 24V 13W, ASSY

2шт.

6

KHR41821

BRACKET

1шт.

Выбрано товаров: 8
