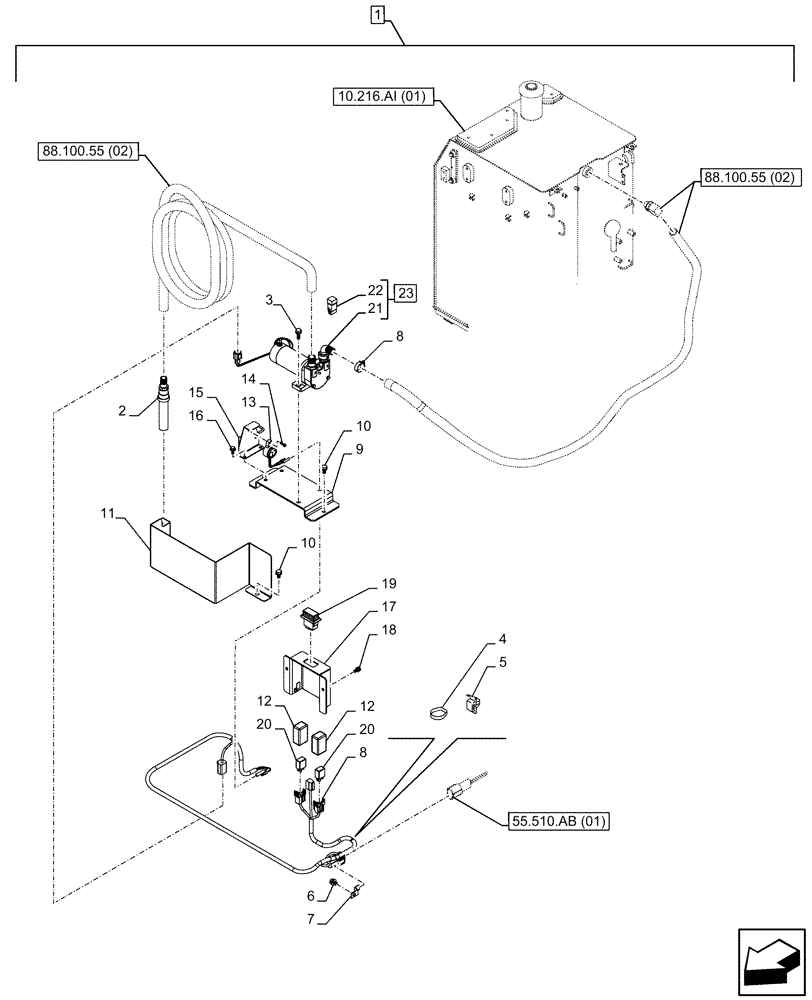

Запчасти Case CX350D LC (88.100.55[01]) - DIA KIT, FUEL TRANSFER PUMP (88) - ACCESSORIES

1

KG0HR816-00

CONSTRUCTION DIA

Fuel Feed Pump, Incl 2 - 23

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KHR12430

VALVE SECTION

1шт.

3

166347A1

BOLT,Sems, M10 x 30mm

2шт.

4

150496A1

MOUNTING CLIP

6шт.

5

KHR10220

MOUNTING CLIP

6шт.

6

KHJ1215

BOLT,Spcl

1шт.

7

KHR16450

CLIP

1шт.

8

KHR34760

WIRE HARNESS

1шт.

9

KHR12860

SUPPORT

1шт.

10

166351A1

BOLT,Sems, M10 x 20mm

5шт.

11

KHR39430

COVER

1шт.

12

159904A1

COVER

2шт.

13

KHR4024

ALARM

1шт.

14

KHR1832

SPECIAL BOLT

1шт.

15

KHR39440

BRACKET

1шт.

16

166345A1

BOLT

2шт.

17

KHR15080

COVER

1шт.

18

159602A1

BOLT,Sems, Hex, M6 x 16mm

2шт.

19

KHR12900

SWITCH

1шт.

20

KHR3802

RELAY

2шт.

21

NSS

NOT SOLD SEPARAT

Pump, Incl in 23

1шт.

22

KHR4053

FUSE

10A

1шт.

23

KHR12840

FUEL PUMP

Fuel Feed, Incl 21, 22

1шт.
