(88.100.35[239]) - DIA KIT, QUICK COUPLER, BOOM, W/ SECOND OPTION, HYDRAULIC LINE

Запчасти Case CX350D LC (88.100.35[239]) - DIA KIT, QUICK COUPLER, BOOM, W/ SECOND OPTION, HYDRAULIC LINE (88) - ACCESSORIES

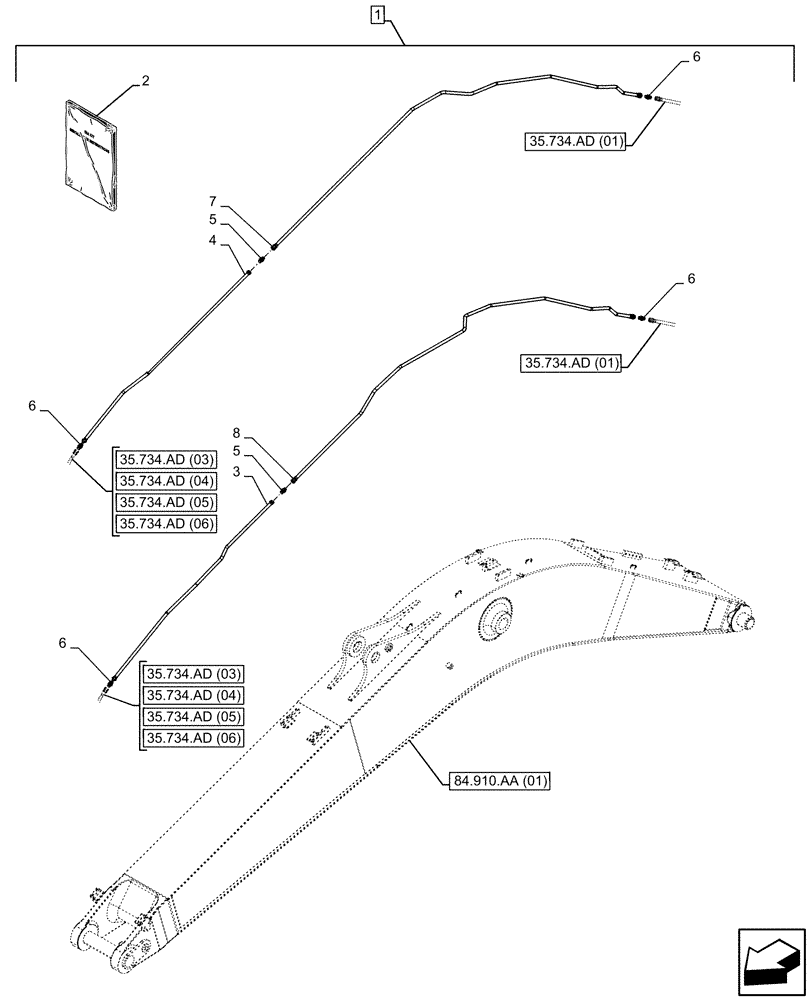

Схема запчастей Case CX350D LC - (88.100.35[239]) - DIA KIT, QUICK COUPLER, BOOM, W/ SECOND OPTION, HYDRAULIC LINE (88) - ACCESSORIES
4
1
35.734.ad (06)
35.734.ad (03)
3
35.734.ad (05)
8
6
35.734.ad (01)
35.734.ad (05)
6
7
2
35.734.ad (01)
35.734.ad (06)
35.734.ad (04)
6
35.734.ad (04)
35.734.ad (03)
5
5
84.910.aa (01)
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG1SP214-00

CONSTRUCTION DIA

Quick Coupler Line, Boom, Second Option, Incl 2 - 8

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

47900061

INSTRUCTION

1шт.

2

47929365

INSTRUCTION

1шт.

2

47928817

INSTRUCTION

1шт.

3

KSV34670

HYD TUBE

LH

1шт.

4

KSV34680

HYD TUBE

RH

1шт.

5

163029A1

UNION

2шт.

6

163065A1

UNION

4шт.

7

KSV33910

TUBE

RH

1шт.

8

KSV33900

TUBE

LH

1шт.
