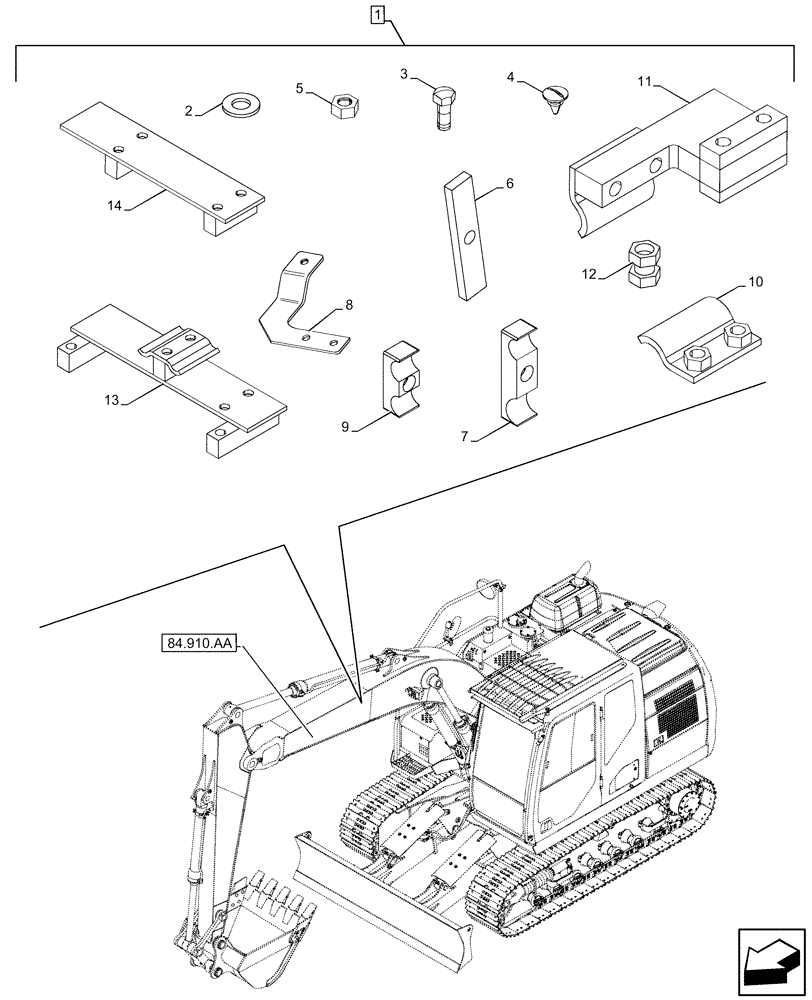

Запчасти Case CX350D LC (88.100.35[236]) - DIA KIT, QUICK COUPLER, BOOM, HBCV, CLAMP (88) - ACCESSORIES

1

KG1SP212-00

CONSTRUCTION DIA

Quick Coupler Line, Boom, HBCV, Incl 2 - 14

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

153081A1

WASHER

M8

6шт.

3

167182A1

BOLT,Sems, M8 x 25mm

9шт.

3

167183A1

BOLT,Sems, M12 x 60mm, Cl 10.9

8шт.

3

827-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 10.9

6шт.

3

166352A1

BOLT

M12 x 30

2шт.

3

KHV11670

BOLT

M12 x 80

2шт.

4

KHV12270

SCREW,M12 x 1

6шт.

5

829-1308

NUT,M8, Cl 10

3шт.

6

KSV34710

BAR

Stopper

2шт.

7

KSV34720

CLAMP

2шт.

8

KHV13670

BAR

Boom Center

2шт.

8

KSV33270

BAR

Boom Foot

1шт.

9

KHV13660

CLAMP

12шт.

10

KHV13470

CLAMP

1шт.

11

KSV34690

BAR

Boom Top

1шт.

11

KSV33050

BAR

Boom Cylinder Bottom

2шт.

12

158842A1

PLUG

G1/4"

2шт.

13

KSV33030

BAR

Boom Center

2шт.

14

KSV32990

BAR

Boom Foot

1шт.
