(88.100.35[228]) - DIA KIT, QUICK COUPLER, SOLENOID VALVE, HYDRAULIC LINE

Запчасти Case CX350D LC (88.100.35[228]) - DIA KIT, QUICK COUPLER, SOLENOID VALVE, HYDRAULIC LINE (88) - ACCESSORIES

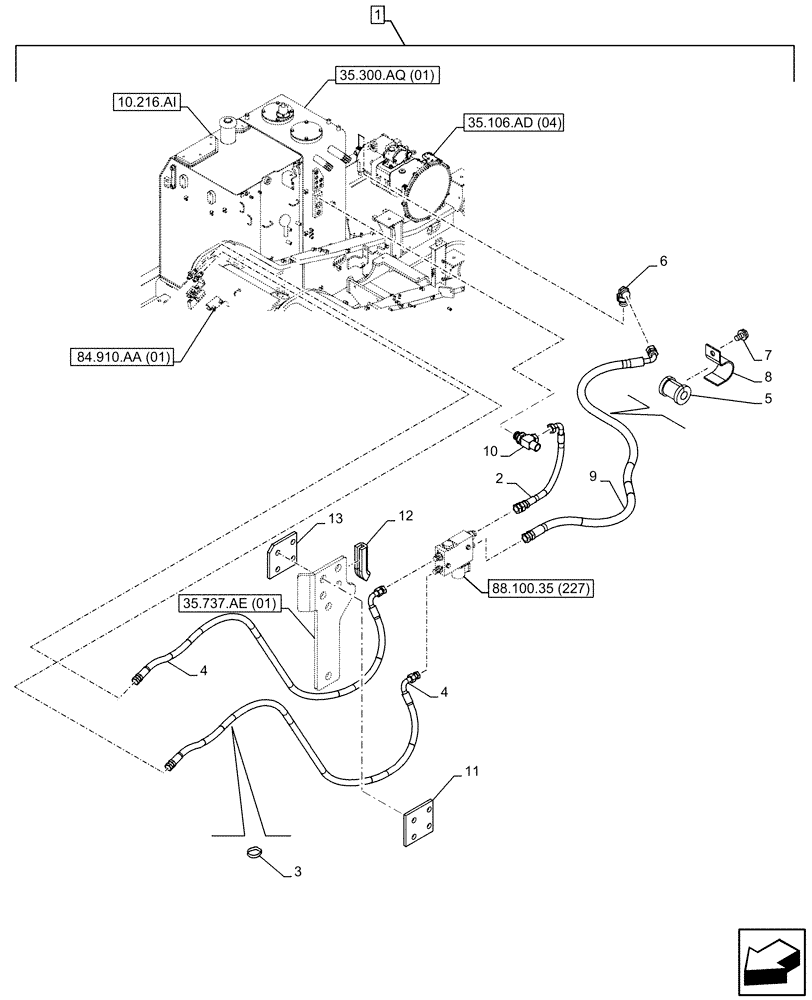

Схема запчастей Case CX350D LC - (88.100.35[228]) - DIA KIT, QUICK COUPLER, SOLENOID VALVE, HYDRAULIC LINE (88) - ACCESSORIES
35.300.aq (01)
7
35.737.ae (01)
4
13
88.100.35 (227)
6
1
10.216.ai
5
2
11
4
12
3
10
35.106.ad (04)
84.910.aa (01)
9
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG1SP219-00

CONSTRUCTION DIA

Quick Coupler Line, Incl 2 - 13

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KHJ1388

HYDRAULIC HOSE,9.52 mm ID x 320.00 mm

1шт.

3

150071A1

MOUNTING CLIP

5шт.

4

KHV13040

HYDRAULIC HOSE

1450mm

2шт.

5

KHJ33450

HOSE CLAMP

1шт.

6

KHJ28710

ELBOW

1шт.

7

166351A1

BOLT,Sems, M10 x 20mm

1шт.

8

KHJ2025

CLAMP

1шт.

9

KWJ11020

HYDRAULIC HOSE,9.52 mm ID x 1200.00 mm

1шт.

10

KHJ1300

TEE

1шт.

11

KBJ24140

PLATE

1шт.

12

HKR0009

SEAL PROTECTION

1шт.

13

KBJ24400

PLATE

1шт.
