(88.100.35[227]) - DIA KIT, QUICK COUPLER, SOLENOID VALVE, WIRE HARNESS

Запчасти Case CX350D LC (88.100.35[227]) - DIA KIT, QUICK COUPLER, SOLENOID VALVE, WIRE HARNESS (88) - ACCESSORIES

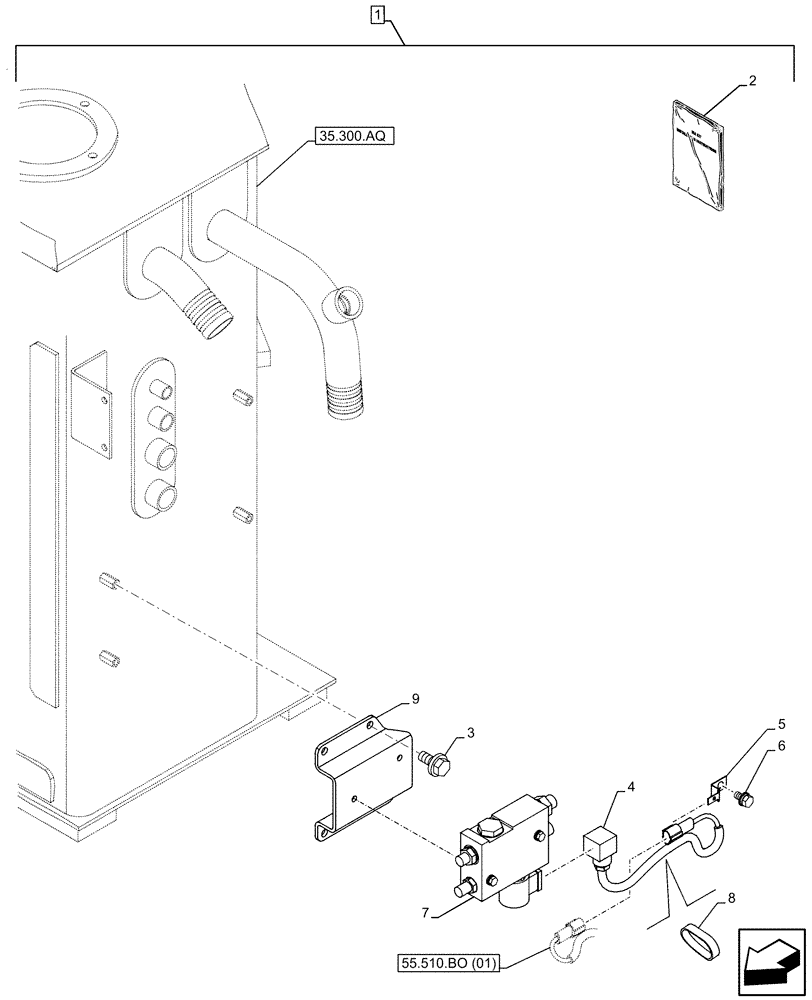

Схема запчастей Case CX350D LC - (88.100.35[227]) - DIA KIT, QUICK COUPLER, SOLENOID VALVE, WIRE HARNESS (88) - ACCESSORIES
6
2
55.510.bo (01)
5
9
35.300.aq
3
4
7
1
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG1SP219-00

CONSTRUCTION DIA

Quick Coupler Line, Incl 2 - 9

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

47900055

INSTRUCTION

1шт.

3

166350A1

BOLT

3шт.

4

KHR39410

WIRE HARNESS

1шт.

5

158962A1

CLIP

1шт.

6

167518A1

BOLT

1шт.

7

KHJ29790

VALVE

1шт.

8

150496A1

MOUNTING CLIP

1шт.

9

KBJ24700

BRACKET

1шт.
