(88.100.35[222]) - DIA KIT, QUICK COUPLER, SOLENOID VALVE, WIRE HARNESS

Запчасти Case CX350D LC (88.100.35[222]) - DIA KIT, QUICK COUPLER, SOLENOID VALVE, WIRE HARNESS (88) - ACCESSORIES

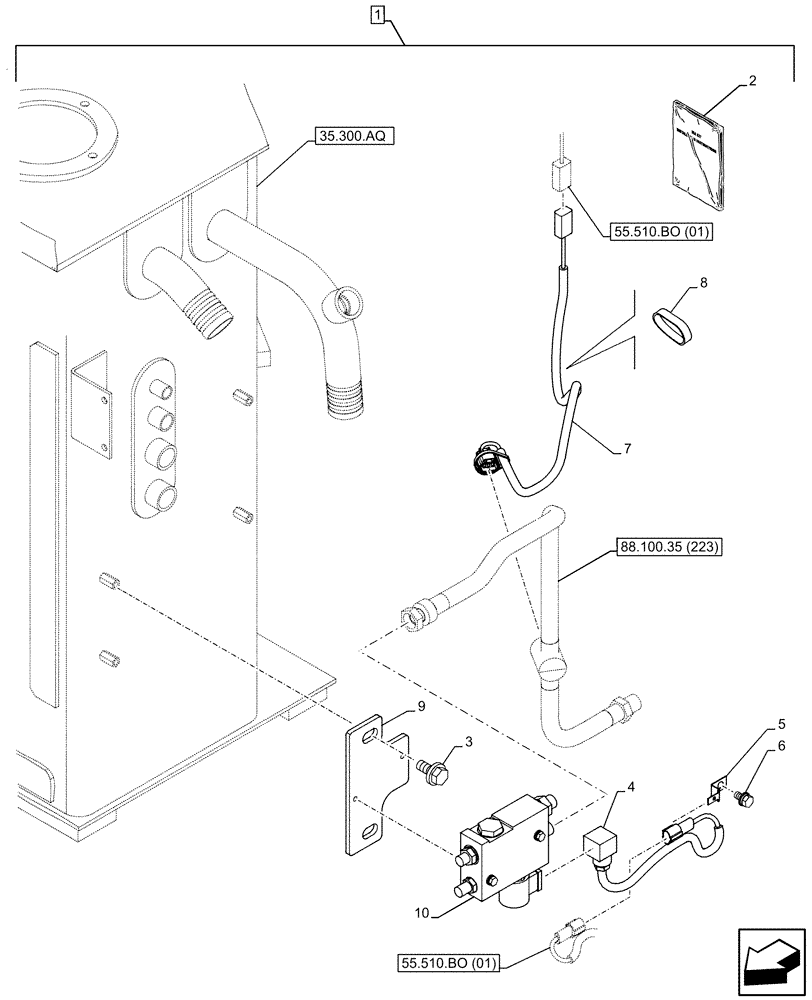

Схема запчастей Case CX350D LC - (88.100.35[222]) - DIA KIT, QUICK COUPLER, SOLENOID VALVE, WIRE HARNESS (88) - ACCESSORIES
55.510.bo (01)
4
55.510.bo (01)
35.300.aq
7
1
9
88.100.35 (223)
2
10
3
8
6
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG1SP209-00

CONSTRUCTION DIA

Quick Coupler Line, Incl 2 - 10

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

47900050

INSTRUCTION

1шт.

2

47900348

INSTRUCTION

1шт.

3

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

4

KHR39410

WIRE HARNESS

1шт.

5

158962A1

CLIP

1шт.

6

167518A1

BOLT

1шт.

7

KHR41960

WIRE HARNESS

1шт.

8

150496A1

MOUNTING CLIP

5шт.

9

KSJ22610

BRACKET

1шт.

10

KHJ29790

VALVE

1шт.
