(88.100.35[215]) - DIA KIT, SAFETY VALVE, BOOM, CLAMP

Запчасти Case CX350D LC (88.100.35[215]) - DIA KIT, SAFETY VALVE, BOOM, CLAMP (88) - ACCESSORIES

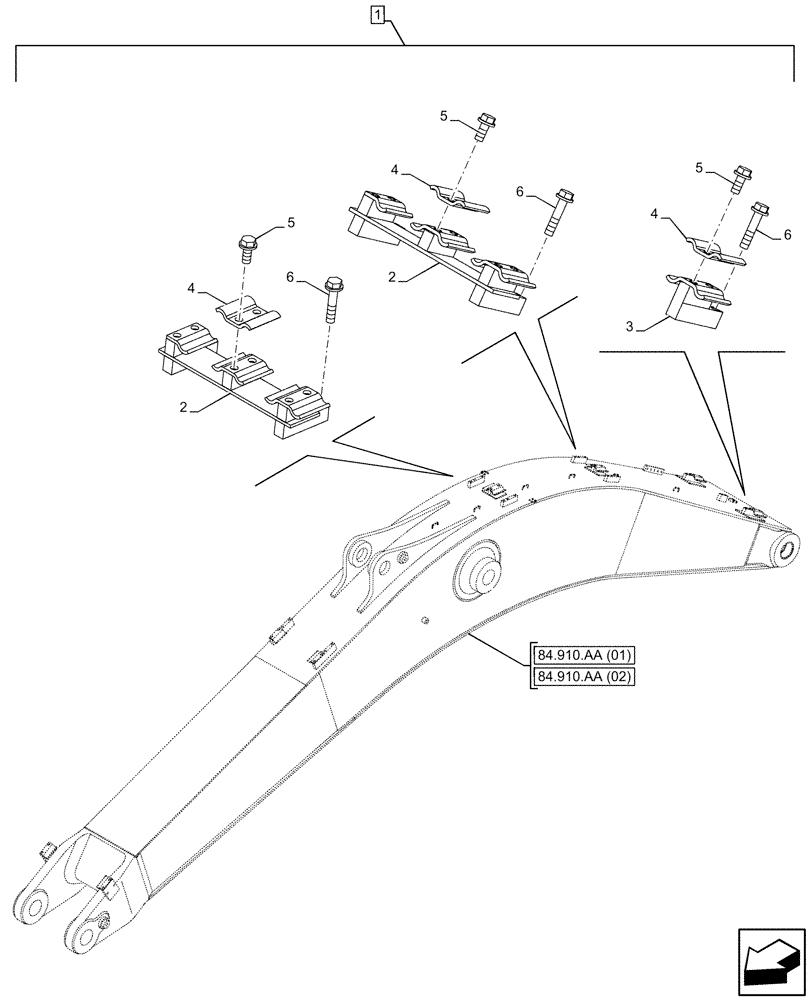

Схема запчастей Case CX350D LC - (88.100.35[215]) - DIA KIT, SAFETY VALVE, BOOM, CLAMP (88) - ACCESSORIES
5
6
4
3
4
4
1
5
6
6
84.910.aa (02)
2
84.910.aa (01)
2
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG1SP092-00

CONSTRUCTION DIA

Hose Burst Check Valve, Incl 2 - 6

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KSV18130

BAR

2шт.

3

KSV17620

BAR

1шт.

4

KHV10520

COLLAR CLAMP

3шт.

5

166352A1

BOLT

M12 x 30

6шт.

6

167183A1

BOLT,Sems, M12 x 60mm, Cl 10.9

M12 x 60

6шт.

Выбрано товаров: 7
