(88.100.35[208]) - DIA KIT, SAFETY VALVE, BOOM, LIFT CYLINDER, CHECK VALVE, LINE

Запчасти Case CX350D LC (88.100.35[208]) - DIA KIT, SAFETY VALVE, BOOM, LIFT CYLINDER, CHECK VALVE, LINE (88) - ACCESSORIES

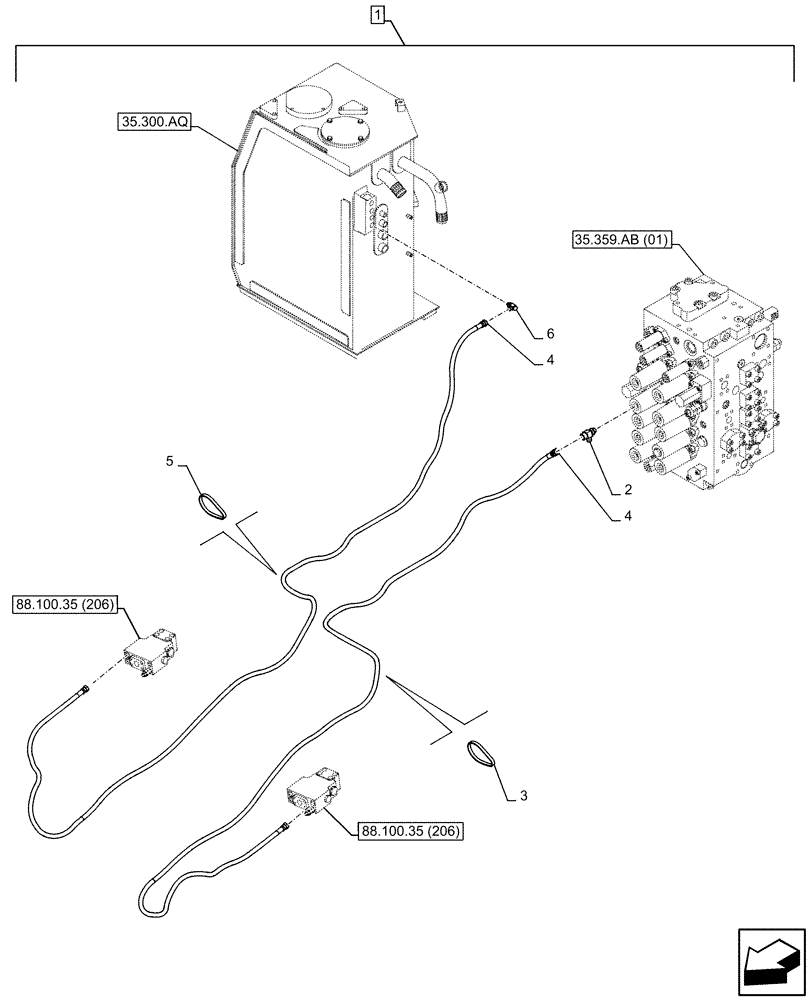

Схема запчастей Case CX350D LC - (88.100.35[208]) - DIA KIT, SAFETY VALVE, BOOM, LIFT CYLINDER, CHECK VALVE, LINE (88) - ACCESSORIES
2
1
88.100.35 (206)
6
3
88.100.35 (206)
4
5
4
35.300.aq
35.359.ab (01)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG1SP092-00

CONSTRUCTION DIA

Hose Burst Check Valve, Incl 2 - 6

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KHJ31880

TEE

1шт.

3

150071A1

MOUNTING CLIP

12шт.

4

KHJ18570

HYDRAULIC HOSE

2шт.

5

150496A1

MOUNTING CLIP

12шт.

6

KHJ11560

TEE

1шт.
