(88.100.35[202]) - DIA KIT, FREE SWING, LOCKOUT SOLENOID VALVE, WIRE HARNESS

Запчасти Case CX350D LC (88.100.35[202]) - DIA KIT, FREE SWING, LOCKOUT SOLENOID VALVE, WIRE HARNESS (88) - ACCESSORIES

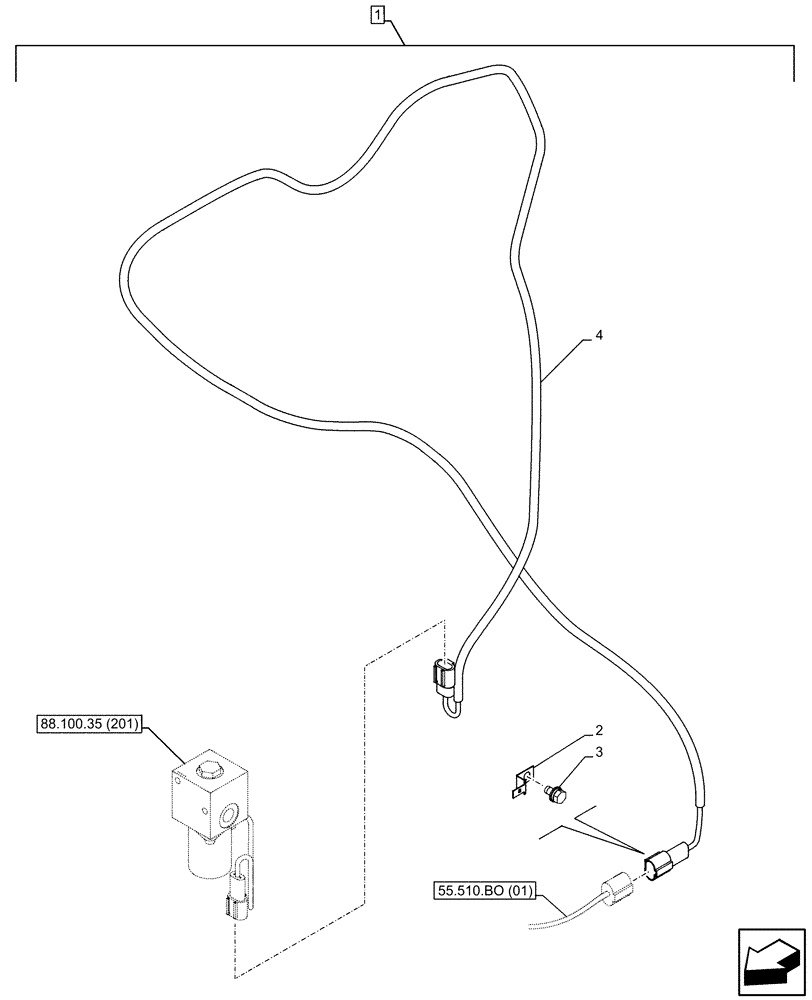

Схема запчастей Case CX350D LC - (88.100.35[202]) - DIA KIT, FREE SWING, LOCKOUT SOLENOID VALVE, WIRE HARNESS (88) - ACCESSORIES
2
3
55.510.bo (01)
1
88.100.35 (201)
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG1SP127-00

CONSTRUCTION DIA

Free Swing Line, Incl 2 - 4

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KHR13170

AIR DUCT

1шт.

3

167518A1

BOLT

1шт.

4

KHR39870

WIRE HARNESS

1шт.

Выбрано товаров: 5
