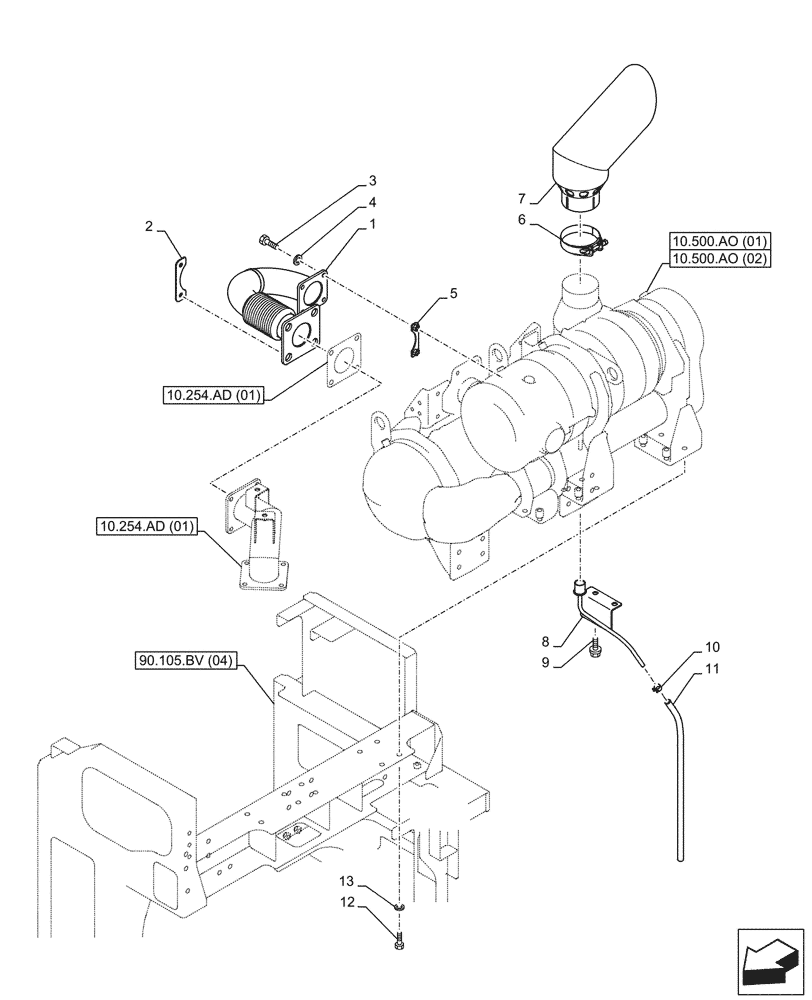

Запчасти Case CX350D LC (10.254.AD[02]) - EXHAUST SYSTEM, EXHAUST PIPE (10) - ENGINE

1

KSH14360

EXHAUST SYSTEM PIPE

1шт.

2

KSH13070

PLATE

2шт.

3

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

4шт.

4

150409A1

WASHER

4шт.

5

KSH13140

PLATE

2шт.

6

KHH16210

CLAMP

1шт.

7

KSH14380

PIPE

1шт.

8

KSH13101

BRACKET

1шт.

9

166052A1

BOLT

M10 x 25mm

2шт.

10

KHH0405

MOUNTING CLIP

1шт.

11

KHH0478

HOSE

800mm

1шт.

12

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

M12 x 35mm

1шт.

13

150811A1

WASHER

1шт.
