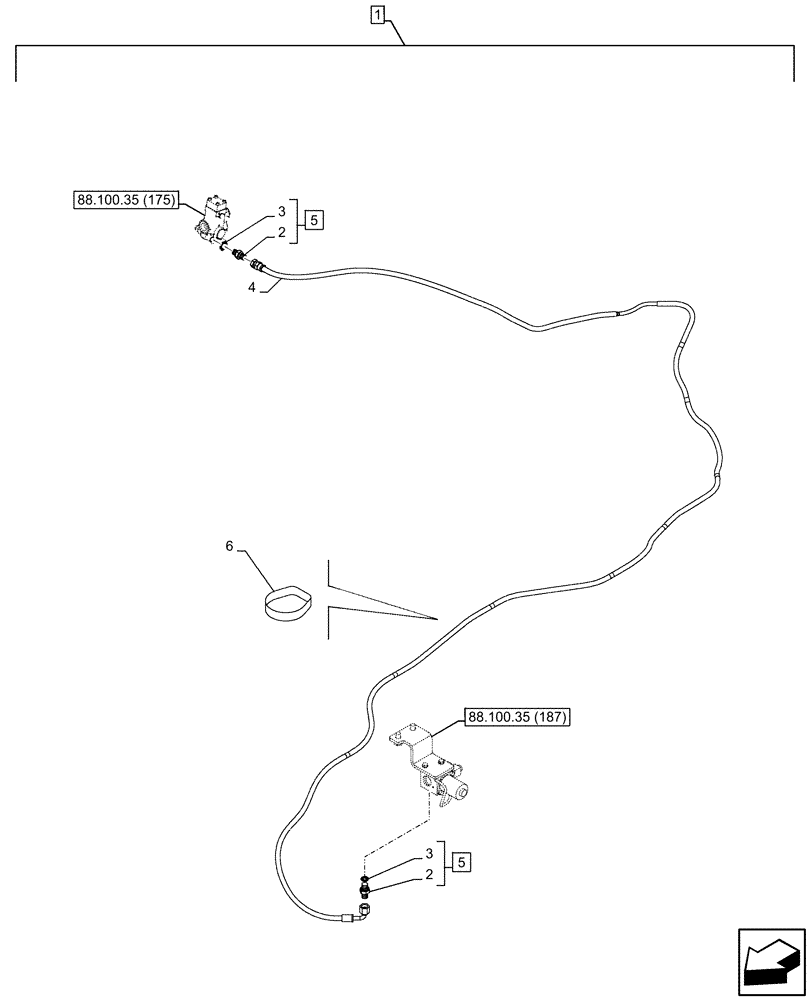

Запчасти Case CX350D LC (88.100.35[190]) - DIA KIT, HAMMER CIRCUIT, HIGH FLOW, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, SOLENOID VALVE, LINE (88) - ACCESSORIES

1

KG1SP081-00

CONSTRUCTION DIA

Multi-Purpose with 3 Way Valve, Incl 2 - 6

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

NSS

NOT SOLD SEPARAT

Fitting, Incl in 5

2шт.

3

154467A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

4

KHJ18130

HOSE

4700mm

1шт.

5

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ASSY, G1/4" x G1/4", Incl 2, 3

2шт.

6

150496A1

MOUNTING CLIP

250mm

5шт.
