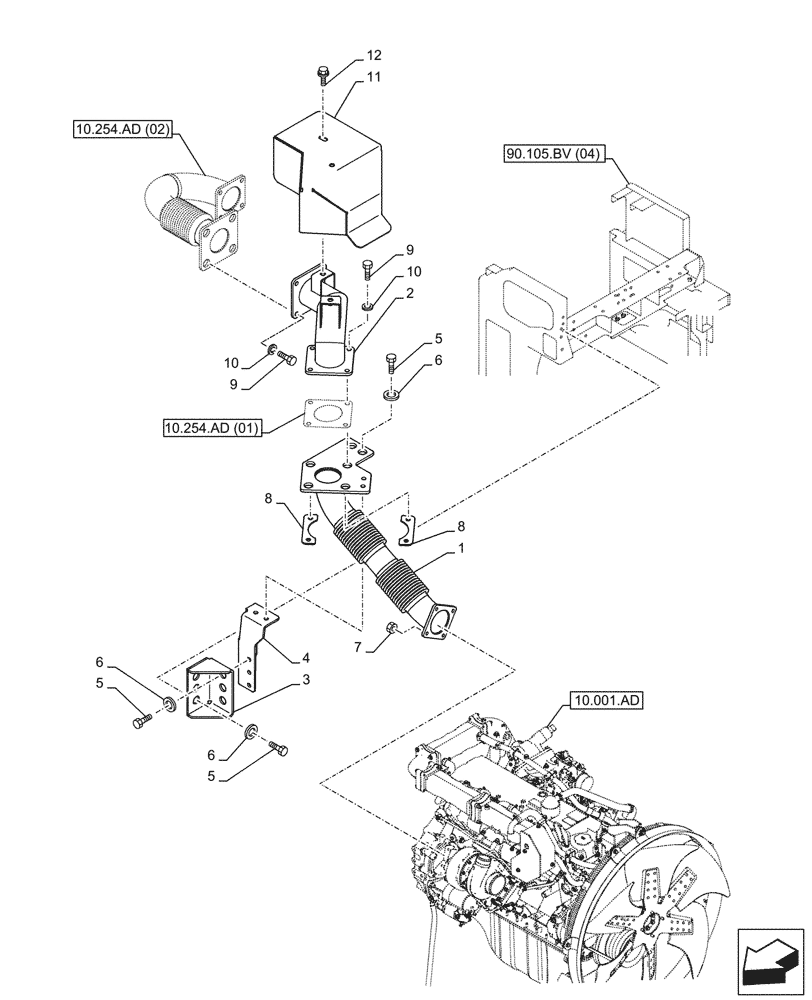

Запчасти Case CX350D LC (10.254.AD[01]) - EXHAUST SYSTEM, EXHAUST PIPE (10) - ENGINE

1

KSH13531

EXHAUST SYSTEM PIPE

1шт.

2

KSH14350

EXHAUST SYSTEM PIPE

, Serial Range: -C0338

1шт.

2

KSH14351

PIPE

, Start Serial: D0338

1шт.

3

KSH14490

BRACKET

1шт.

4

KSH14500

BRACKET

1шт.

5

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

M10 x 30mm

8шт.

6

KHV10400

WASHER

8шт.

7

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

8шт.

8

KSH13070

PLATE

4шт.

9

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

8шт.

10

150409A1

WASHER

8шт.

11

KSH14370

COVER

, Serial Range: -C0338

1шт.

12

105R012Y025R

BOLT

M12 x 25mm, Serial Range: -C0338

2шт.
