(88.100.35[186]) - DIA KIT, HAMMER CIRCUIT, HIGH FLOW, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, SOLENOID VALVE, REDUCER, LINE

Запчасти Case CX350D LC (88.100.35[186]) - DIA KIT, HAMMER CIRCUIT, HIGH FLOW, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, SOLENOID VALVE, REDUCER, LINE (88) - ACCESSORIES

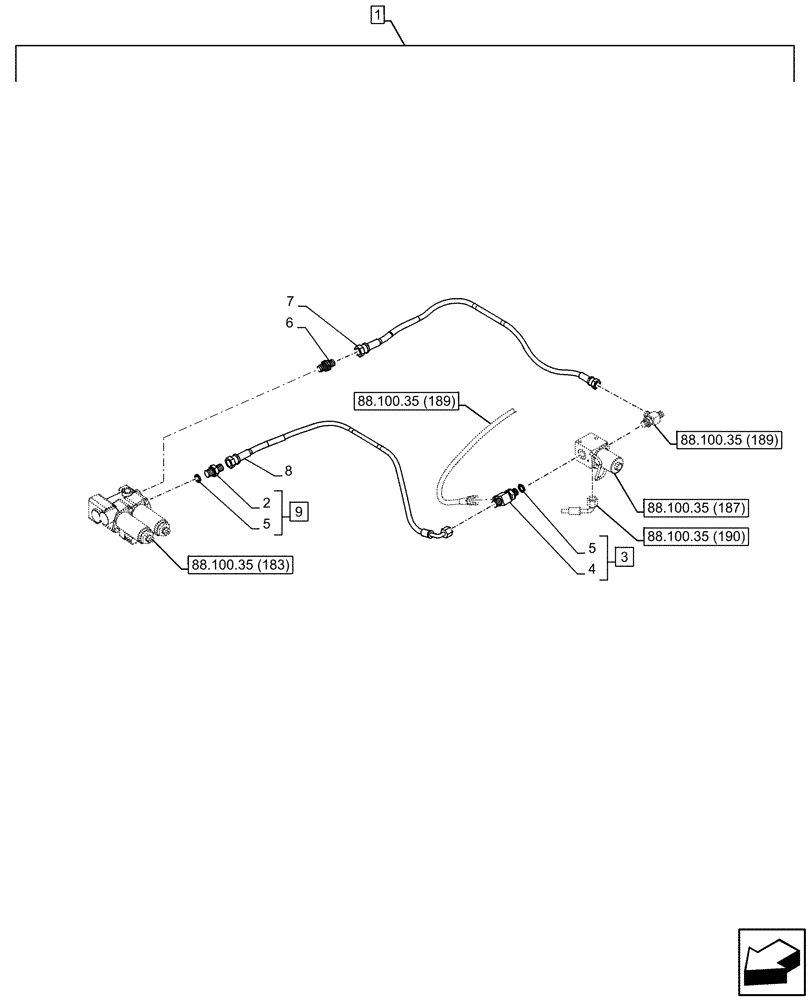

Схема запчастей Case CX350D LC - (88.100.35[186]) - DIA KIT, HAMMER CIRCUIT, HIGH FLOW, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, SOLENOID VALVE, REDUCER, LINE (88) - ACCESSORIES
9
2
88.100.35 (183)
4
6
3
5
5
1
88.100.35 (189)
88.100.35 (190)
7
88.100.35 (187)
88.100.35 (189)
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG1SP081-00

CONSTRUCTION DIA

Multi-Purpose with 3 Way Valve, Incl 2 - 9

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

NSS

NOT SOLD SEPARAT

Fitting, Incl in 9

1шт.

3

159497A1

TEE

ASSY, G1/4" x G1/4" x G1/4", Incl 4, 5 (Qty 1)

1шт.

4

NSS

NOT SOLD SEPARAT

T-Fitting, Incl in 3

1шт.

5

154467A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

6

161841A1

HYD CONNECTOR

G1/4"

1шт.

7

KHJ2163

HOSE

6mm ID X620mm

1шт.

8

KHJ31500

HOSE

1шт.

9

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ASSY, G1/4" x G1/4", Incl 2, 5 (Qty 1)

1шт.
