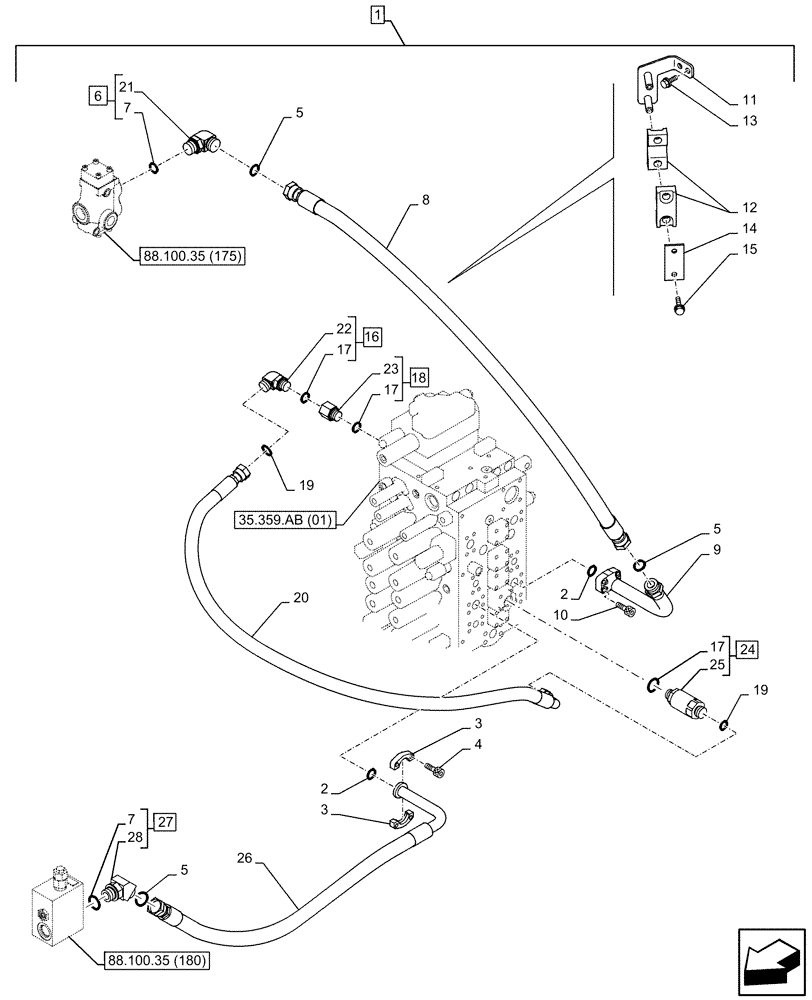

Запчасти Case CX350D LC (88.100.35[179]) - DIA KIT, HAMMER CIRCUIT, HIGH FLOW, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, DIRECTIONAL CONTROL VALVE, RELIEF VALVE, LINE (88) - ACCESSORIES

1

KG1SP081-00

CONSTRUCTION DIA

Multi-Purpose with 3 Way Valve, Incl 2 - 28

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

155211A1

O-RING

2шт.

3

153459A1

FLANGE

2шт.

4

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

4шт.

5

KHJ1361

O-RING,0.07" Thk x 0.926" ID

3шт.

6

KHJ1805

ELBOW

ASSY, Incl 7 (Qty 1), 21

1шт.

7

154523A1

O-RING

2шт.

8

KSJ13731

HYDRAULIC HOSE

1шт.

9

KSJ20990

PIPE

1шт.

10

862-10035

HEX SOC SCREW,M10 x 35mm, Cl 12.9

4шт.

11

KSJ21000

BRACKET

1шт.

12

KRJ11450

HOSE CLIP

2шт.

13

166352A1

BOLT

2шт.

14

KRJ10800

PLATE

1шт.

15

166052A1

BOLT

2шт.

16

KHJ1804

ELBOW

ASSY, Incl 17 (Qty 1), 22

1шт.

17

154503A1

O-RING

3шт.

18

159198A1

ADAPTER

ASSY, Incl 17 (Qty 1), 23

1шт.

19

KHJ1360

O-RING,0.07" Thk x 0.739" ID

2шт.

20

KSJ19120

HOSE

1шт.

21

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 6

1шт.

22

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 16

1шт.

23

NSS

NOT SOLD SEPARAT

Fitting, Incl in 18

1шт.

24

KHJ10480

VALVE SECTION

ASSY, Incl 17 (Qty 1), 25

1шт.

25

NSS

NOT SOLD SEPARAT

Valve, Incl in 24

1шт.

26

KSJ19080

HOSE

1шт.

27

KHJ11370

ELBOW

ASSY, Incl 7 (Qty 1), 28

1шт.

28

NSS

NOT SOLD SEPARAT

Elbow, Incl in 27

1шт.
