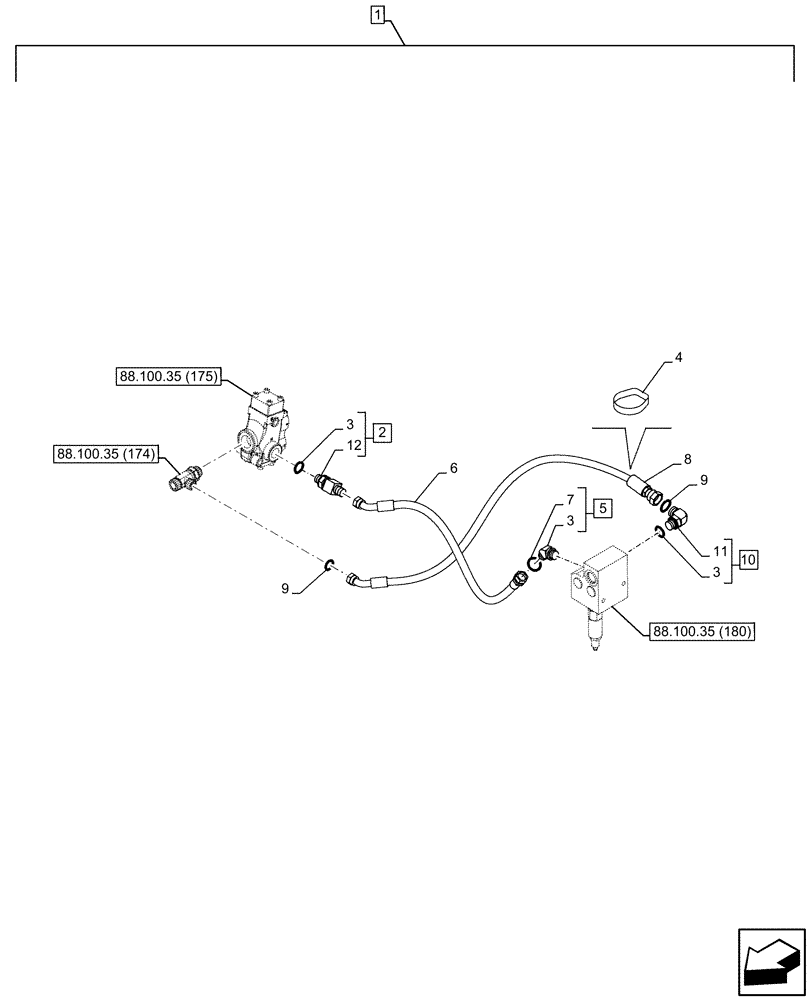

Запчасти Case CX350D LC (88.100.35[178]) - DIA KIT, HAMMER CIRCUIT, HIGH FLOW, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, DIRECTIONAL CONTROL VALVE, LINE (88) - ACCESSORIES

1

KG1SP081-00

CONSTRUCTION DIA

Multi-Purpose with 3 Way Valve, Incl 2 - 12

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

ASSY, Incl 3 (Qty1), 12

1шт.

3

154503A1

O-RING

3шт.

4

150496A1

MOUNTING CLIP

5шт.

5

157586A1

ELBOW

ASSY, Incl 3 (Qty 1), 7

1шт.

6

KSJ16070

HYDRAULIC HOSE

1шт.

7

NSS

NOT SOLD SEPARAT

45° Fitting, Incl in 5

1шт.

8

KSJ16060

HYDRAULIC HOSE

1шт.

9

KHJ1360

O-RING,0.07" Thk x 0.739" ID

2шт.

10

KHJ1804

ELBOW

ASSY, Incl 3 (Qty 1), 11

1шт.

11

NSS

NOT SOLD SEPARAT

Elbow, Incl in 10

1шт.

12

NSS

NOT SOLD SEPARAT

Adapter, Incl in 2

1шт.
