Запчасти Case CX350D LC (88.100.35[177]) - DIA KIT, HAMMER CIRCUIT, HIGH FLOW, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, DIRECTIONAL CONTROL VALVE, LINE (88) - ACCESSORIES

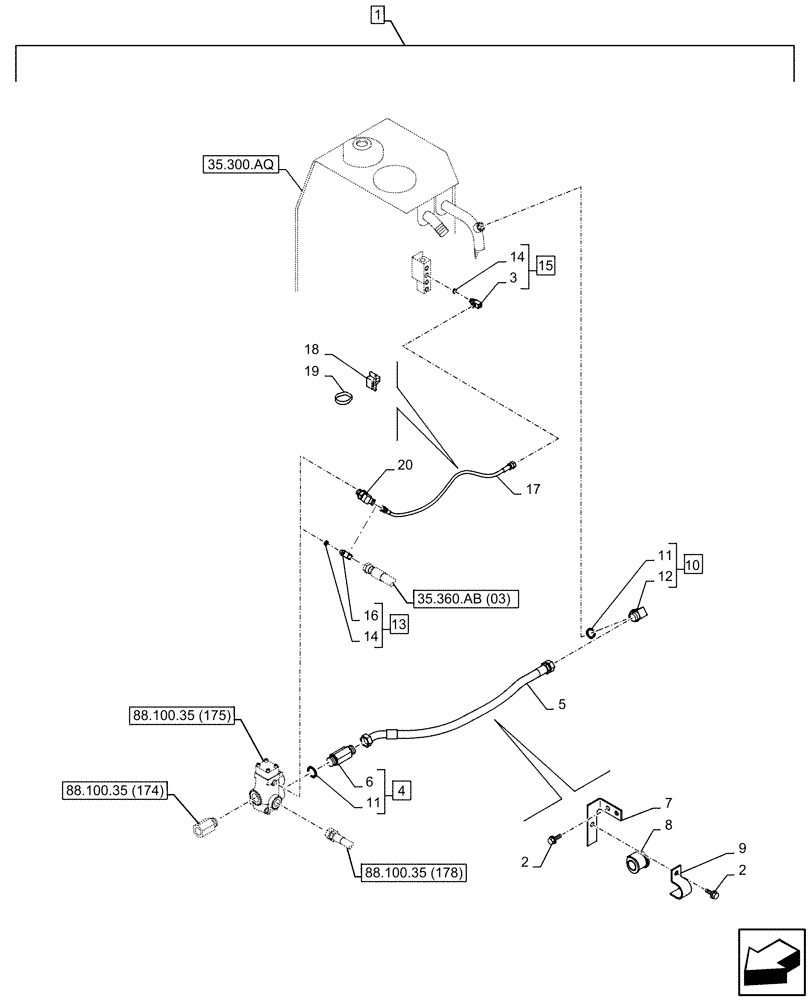

Схема запчастей Case CX350D LC - (88.100.35[177]) - DIA KIT, HAMMER CIRCUIT, HIGH FLOW, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, DIRECTIONAL CONTROL VALVE, LINE (88) - ACCESSORIES
15
2
11
9
8
14
88.100.35 (174)
20
5
2
11
14
88.100.35 (178)
13
4
10
12
16
35.300.aq
19
18
17
6
1
7
3
88.100.35 (175)
35.360.ab (03)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG1SP081-00

CONSTRUCTION DIA

Multi-Purpose with 3 Way Valve, Incl 2 - 20

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

166352A1

BOLT

3шт.

3

NSS

NOT SOLD SEPARAT

T - Fitting, Incl in 15

1шт.

4

KTJ1261

STUD

ASSY, Incl 6, 11 (Qty 1)

1шт.

5

KSJ19130

HOSE

1шт.

6

NSS

NOT SOLD SEPARAT

Fitting, Incl in 4

1шт.

7

KBJ15230

BRACKET, SUPPORTING

1шт.

8

KHJ2680

COLLAR CLAMP

1шт.

9

KBJ11860

SUPPORT

1шт.

10

157581A1

ELBOW,90 Degree, 1" O-Ring x 1"

ASSY, Incl 11 (Qty 1), 12

1шт.

11

154523A1

O-RING

2шт.

12

NSS

NOT SOLD SEPARAT

Fitting, Incl in 10

1шт.

13

159497A1

TEE

ASSY, Incl 14 (Qty 1), 16

1шт.

14

154467A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

15

KHJ2773

TEE

ASSY, Incl 3, 14 (Qty 1)

1шт.

16

NSS

NOT SOLD SEPARAT

T - Fitting, Incl in 13

1шт.

17

KHJ2051

HOSE

1шт.

18

KHR10220

MOUNTING CLIP

3шт.

19

150496A1

MOUNTING CLIP

6шт.

20

KHJ28580

ELBOW

1шт.
