(88.100.35[174]) - DIA KIT, HAMMER CIRCUIT, HIGH FLOW, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, BOOM, LINE

Запчасти Case CX350D LC (88.100.35[174]) - DIA KIT, HAMMER CIRCUIT, HIGH FLOW, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, BOOM, LINE (88) - ACCESSORIES

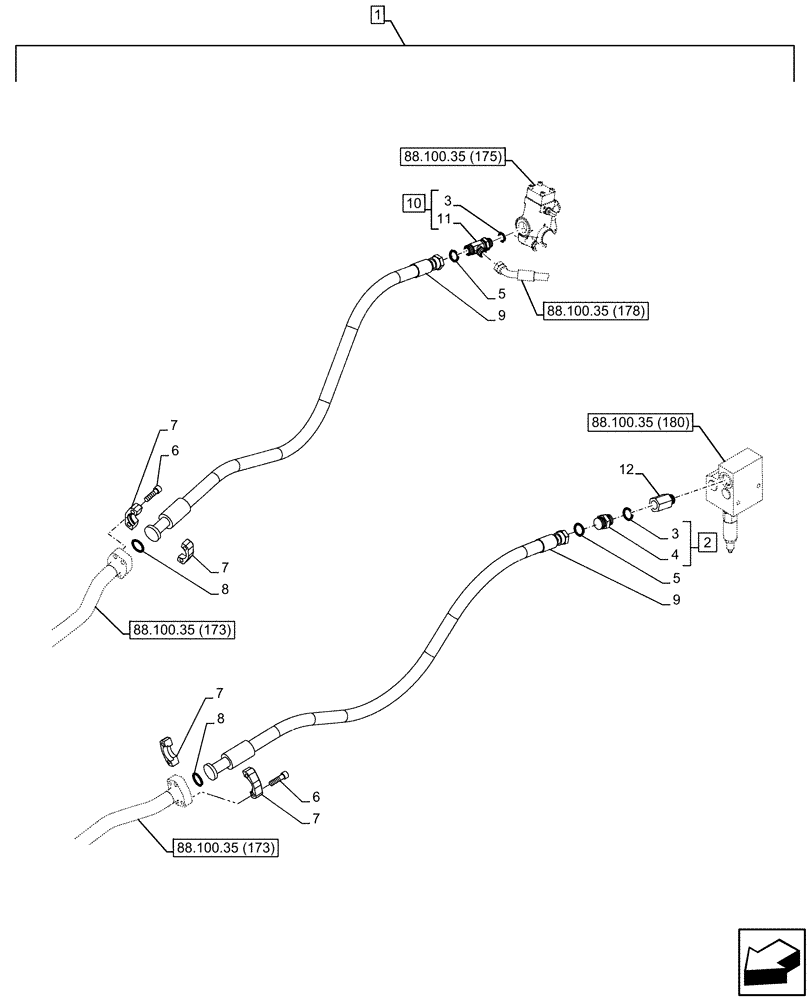

Схема запчастей Case CX350D LC - (88.100.35[174]) - DIA KIT, HAMMER CIRCUIT, HIGH FLOW, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, BOOM, LINE (88) - ACCESSORIES
8
10
3
7
6
1
5
4
11
8
3
7
88.100.35 (175)
2
88.100.35 (178)
5
88.100.35 (180)
7
6
7
88.100.35 (173)
9
9
88.100.35 (173)
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG1SP081-00

CONSTRUCTION DIA

Multi-Purpose with 3 Way Valve, Incl 2 - 12

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KHJ1349

ADAPTER

ASSY, Incl 3 (Qty 1), 4

1шт.

3

154523A1

O-RING

2шт.

4

NSS

NOT SOLD SEPARAT

Fitting, Incl in 2

1шт.

5

KHJ1361

O-RING,0.07" Thk x 0.926" ID

2шт.

6

108R014Y055R

BOLT

8шт.

7

150124A1

FLANGE

4шт.

8

164450A1

O-RING

2шт.

9

KSJ19110

HOSE

2шт.

10

KHJ22660

TEE

ASSY, Incl 3 (Qty 1), 11

1шт.

11

NSS

NOT SOLD SEPARAT

Tee, Incl in 10

1шт.

12

KHJ25900

SOCKET

1шт.
