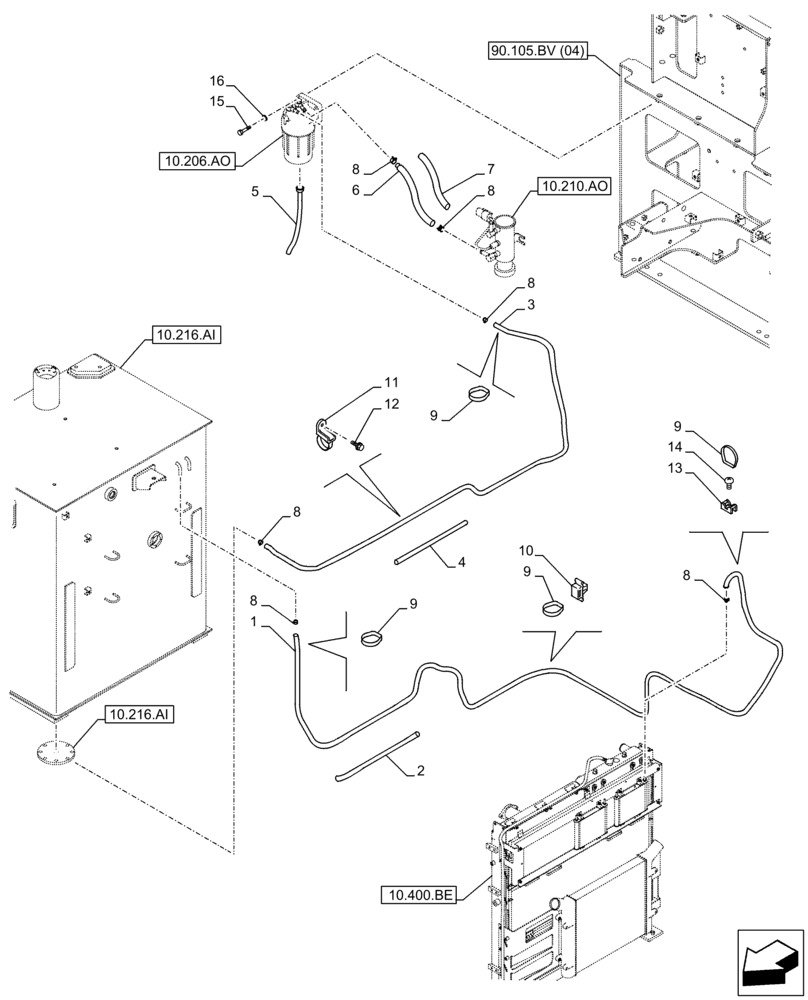

Запчасти Case CX350D LC (10.216.BA[01]) - FUEL TANK, LINES (10) - ENGINE

1

KHH13660

FUEL HOSE

5900mm

1шт.

2

KHR26130

FLEXIBLE SHEATH

19mm ID x 5800mm

1шт.

3

KHH0433

FUEL HOSE

3500mm

1шт.

4

162933A1

PLASTIC-RUBBER TUBE

19mm ID x 3400mm

1шт.

5

KHH12880

PLASTIC-RUBBER TUBE

600mm

1шт.

6

KHH16900

HOSE

325mm

1шт.

7

KHR15440

TUBE

19mm ID x 250mm

1шт.

8

KHH0405

MOUNTING CLIP

6шт.

9

150496A1

MOUNTING CLIP

250mm

1шт.

10

KHR10220

MOUNTING CLIP

16шт.

11

KHR2581

CLAMP

1шт.

12

KHJ1215

BOLT,Spcl

M8 x 25mm

1шт.

13

150860A1

COLLAR

1шт.

14

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

M6 x 8mm

1шт.

15

827-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 10.9

M8 x 40mm

2шт.

16

153081A1

WASHER

2шт.
