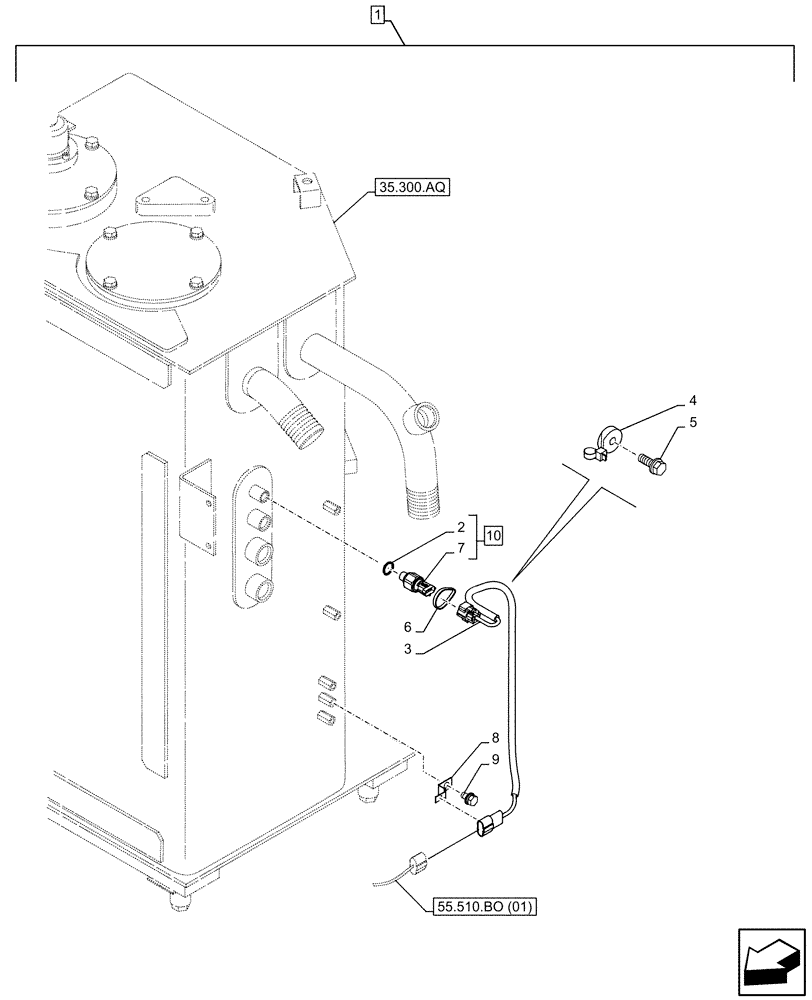

Запчасти Case CX350D LC (88.100.35[169]) - DIA KIT, HAMMER CIRCUIT, HIGH FLOW, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, PRESSURE SWITCH (88) - ACCESSORIES

1

KG1SP079-00

CONSTRUCTION DIA

Multi-Purpose with 3 Way Valve, Incl 2 - 10

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

3

KHR42050

WIRE HARNESS

1шт.

4

KHR2584

CLAMP

2шт.

5

KHJ1215

BOLT,Spcl

2шт.

6

150496A1

MOUNTING CLIP

250mm

1шт.

7

NSS

NOT SOLD SEPARAT

Sensor, Incl in 10

1шт.

8

158962A1

CLIP

1шт.

9

167518A1

BOLT

1шт.

10

KHR32870

SENSOR

ASSY, Pressure, 1 MPa, Incl 2, 7

1шт.
