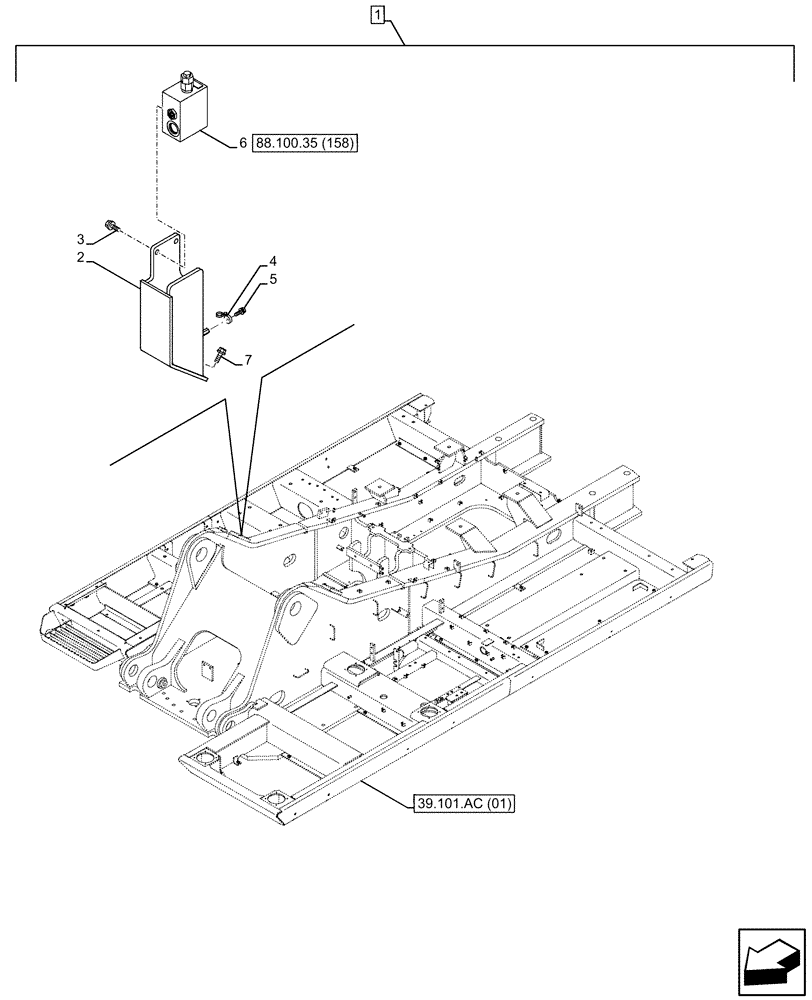

Запчасти Case CX350D LC (88.100.35[157]) - DIA KIT, HAMMER CIRCUIT, HIGH FLOW, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, RELIEF VALVE (88) - ACCESSORIES

1

KG1SP079-00

CONSTRUCTION DIA

Multi-Purpose with 3 Way Valve, Incl 2 - 7

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KSJ17120

BRACKET

1шт.

3

166352A1

BOLT

2шт.

4

KHR2584

CLAMP

M8

1шт.

5

KHJ1215

BOLT,Spcl

M8 x 25mm

1шт.

6

KHJ10410

VALVE SECTION

ASSY

1шт.

7

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

4шт.
