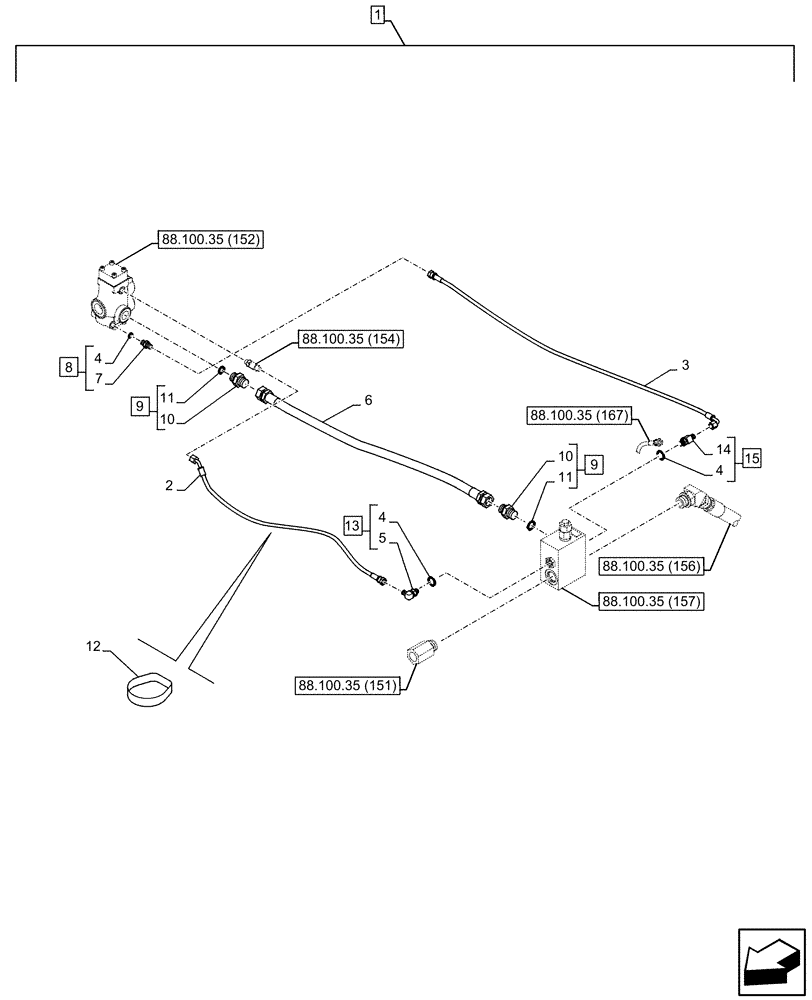

Запчасти Case CX350D LC (88.100.35[155]) - DIA KIT, HAMMER CIRCUIT, HIGH FLOW, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, DIRECTIONAL CONTROL VALVE, LINE (88) - ACCESSORIES

1

KG1SP079-00

CONSTRUCTION DIA

Multi-Purpose with 3 Way Valve, Incl 2 - 15

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KHJ24910

HOSE ASSY.

1шт.

3

KHJ2090

HOSE

1шт.

4

154467A1

O-RING,10.8mm ID x 2.4mm Width

3шт.

5

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 13

1шт.

6

KSJ17140

HYDRAULIC HOSE

1шт.

7

NSS

NOT SOLD SEPARAT

Fitting, Incl in 8

1шт.

8

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ASSY, Incl 4 (Qty 1), 7

1шт.

9

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

ASSY, Incl 10, 11 (Qty 1)

2шт.

10

NSS

NOT SOLD SEPARAT

Fitting, Incl in 9

2шт.

11

154503A1

O-RING

2шт.

12

150496A1

MOUNTING CLIP

6шт.

13

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

ASSY, Incl 4 (Qty 1), 5

1шт.

14

NSS

NOT SOLD SEPARAT

Fitting, Incl in 15

1шт.

15

159497A1

TEE

ASSY, Incl 4 (Qty 1), 14

2шт.
